Description
Backhoe & Excavator Auger Drive for Machines with up to 45GPM

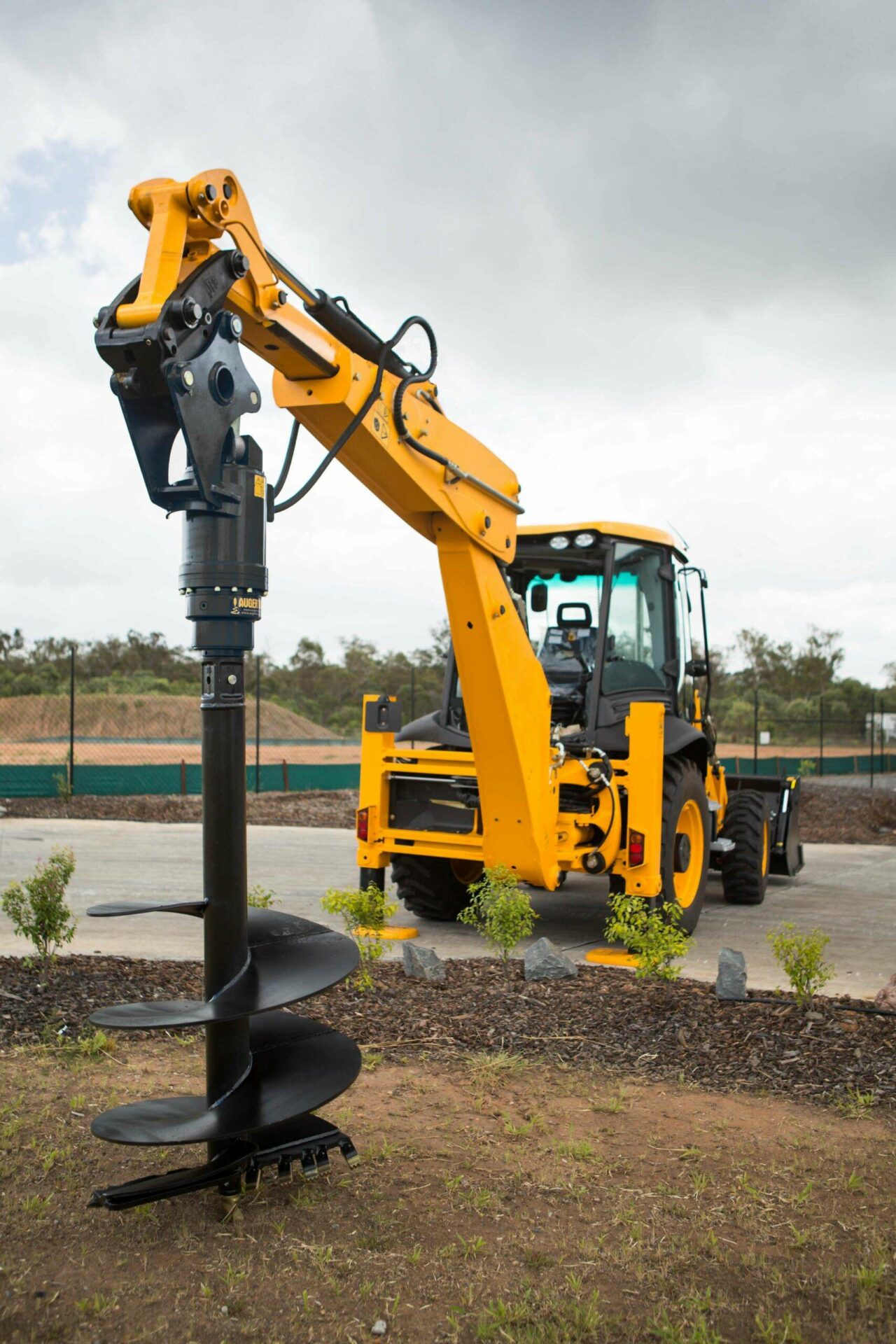

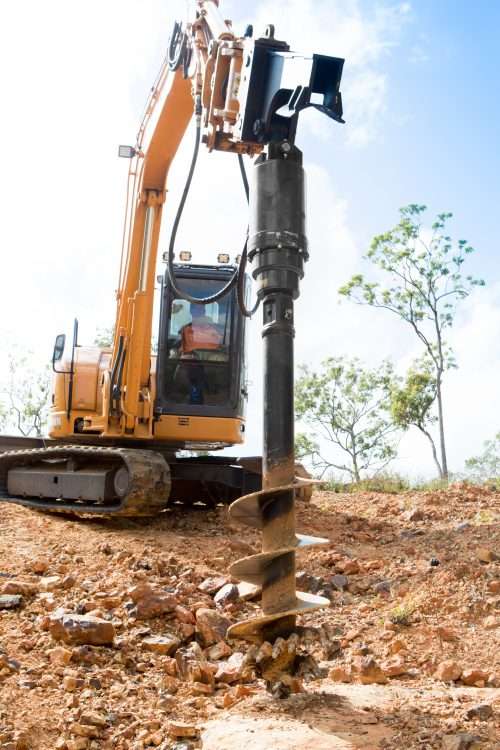

This Backhoe Auger Drive is ideal to suit backhoes and excavators up to 15 tons with up to 45GPM.
We build the mount to suit your specific excavator or you can purchase the drive only!
Our model 11000-45 Backhoe & Excavator Auger Drive gives you enough torque to drive a 48″ auger as deep as 10ft. If you have a special attachment inquiry or are unsure of your machine’s compatibility with a particular attachment, please do not hesitate to contact us on (941) 212-0037.
Choose your auger to suit this auger drive here!
Specifications
BACKHOES – SUITS S6 AUGERS (2.96″ SQUARE) – 6 in. – 48 in. Diameter
Torque Range: 3,705 – 11,115 ft-lb
Oil Pressure Range: 1,160 – 3,481 psi
Oil Flow Range: 21-45GPM
Speed Range: 20-43 RPM
Unit Height: 37 in.
Unit Diameter: 12 in.
Unit Weight: 364 lbs
Hitch Options: Single Pin Hitch
Double Pin Hitch
Cradle Hitch
Output Extras: 2 Way Valve
Output Shaft : 2.96 in. Square
S6 Augers (2.96″ SQUARE)
6 in. – 48 in. Diameter
Suitable Excavators for the 11000-45 (as a guideline):
Bobcat E145
CAT 314, 316
CASE CX145, 160
Doosan DX140
JCB JS145, 160
John Deere/Hitachi 135G, 160G
Link Belt 145×4
Komatsu PC138, PC160
Sany SY135
Takeuchi TB2150
Volvo EC140, ECR145
Features
Forged Hood Ears
Auger drives take up a lot of stress in certain areas, especially the hood and ears on top of the unit. These are forged pieces to endure the strain of drilling. Hood pins are also locked into place to ensure they never detach from the auger drive.
Epicyclic Gearbox
Auger Torque manufactures their own planetary gearbox. The unique design features the non-dislodgement shaft design, and maximizes the final output torque of the unit at the operating hydraulic pressure. Manufacturing their own gearbox allows Auger Torque to maintain high quality and reliability that you depend on for your attachments.
Hose & Coupler Options
All of our S4 auger drives (2” hex) come with high quality hoses and couplers included.
Larger auger drive units come with hoses to match the motor size of the unit.
6000-40 (2.5” hex) drive come with ¾” hoses
11000-45 to 18500-45 (3” square) drives come with 1” hoses.
Non-Dislodgement Shaft
One unique feature of the auger torque range is the non-dislodgement shaft. The gearbox design of each Auger Torque drive ensures that the output shaft is locked in place and will NEVER fall out of the gearbox housing.
We offer a lifetime guarantee against the shaft falling out of your auger drive.
High Quality Hydraulic Motors
Auger Torque’s huge buying power
means we work closely with high
quality suppliers to develop the most
reliable attachments available on the
market today
Warranty Information
We provide replacement warranty units for the coverage listed below.
All Auger Torque products are warranted for the periods below:
- Planetary Gearbox Components – 72 Months
- Hydraulic Motors – 36 Months
- All Other Parts / Products – 24 Months
For any additional information on the Auger Torque range, you can visit their website here!
We recommend this drive for excavators up to 14-15 tons.
We recommend any auger diameter up to 48″.
The 11000-45 drive unit has a 3″ square (75mm) output shaft.
