Description
Excavator Compactor Plate | AttachWorx Range
Excavators up to 25 tons!

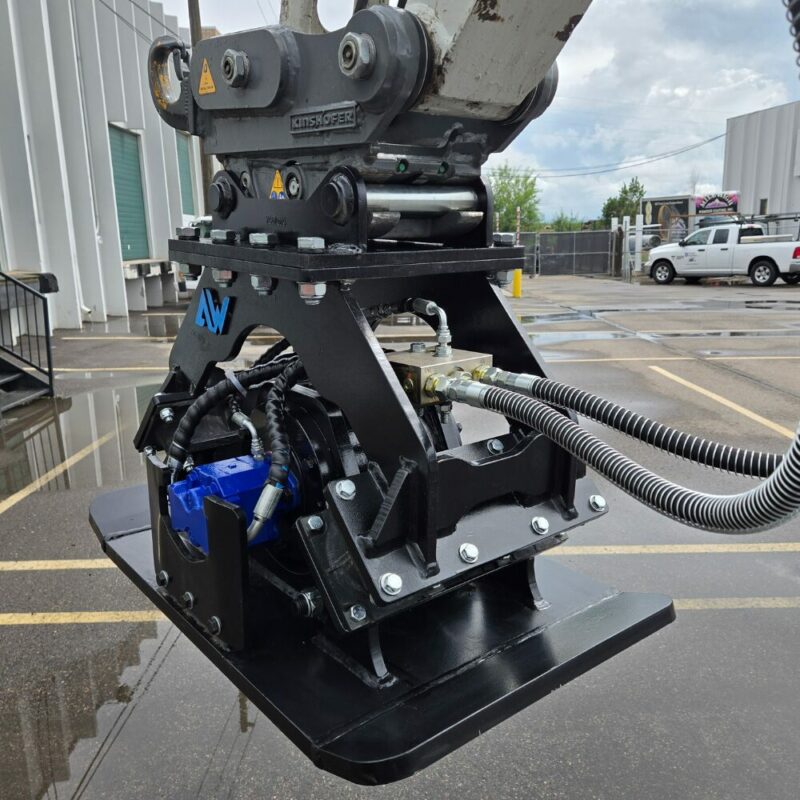

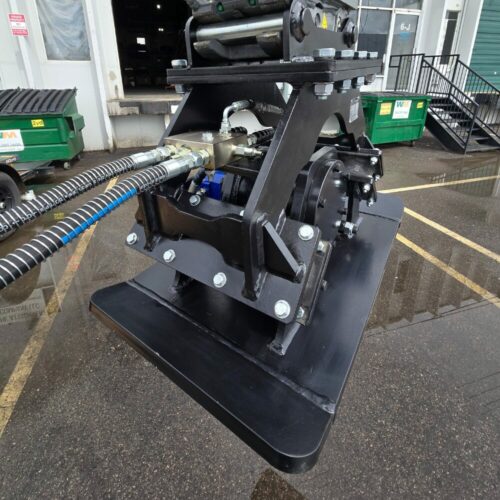

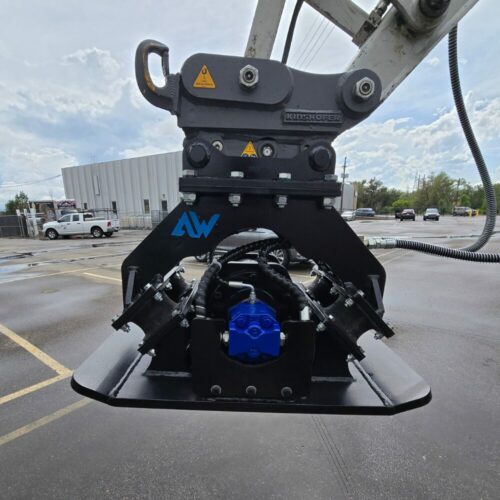

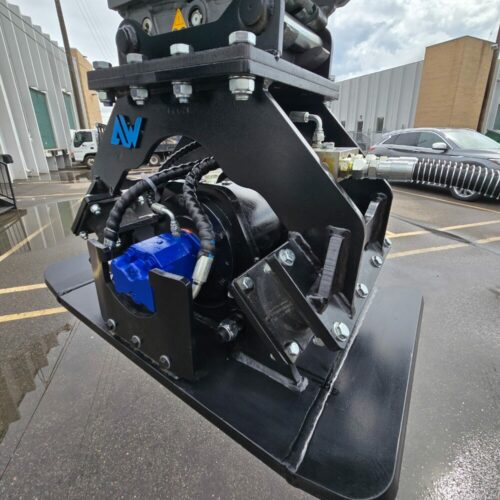

The AttachWorx Excavator Plate Compactor is the perfect for excavators from 1.5 to 25 tons. Compactor plates manufactured from high quality components to withstand the toughest tasks.Â
Â
If you have a special attachment inquiry or are unsure of your machine’s compatibility with a particular attachment, please do not hesitate to contact us on (720) 213 8155.
Excavator Compactor Models & Specifications
C04
Excavators up to 4 tons
- Operating Weight:Â 525lbs (without mounting bracket)
- Oil Flow Range: 7-13GPM
- Max Pressure: 2000psi
- Vibrating Frequency:Â 2,000vpm (vibrations per minute)
- Force @ Maximum Frequency:Â 8,000lbs
- Baseplate Size:Â 16″ x 32″
C16
Excavators from 10 up to 16 tons
- Operating Weight:Â 1500lbs (without mounting bracket)
- Oil Flow Range: 22-28GPM
- Max Pressure:Â 2200psi
- Vibrating Frequency: 3,000vpm (vibrations per minute)
- Force @ Maximum Frequency:Â 14,000lbs
- Baseplate Size:Â 22″ x 36″
C06
Excavators from 3 up to 6 tons
- Operating Weight:Â 770lbs (without mounting bracket)
- Oil Flow Range:Â 10-17GPM
- Max Pressure:Â 2000psi
- Vibrating Frequency:Â 2,000vpm (vibrations per minute)
- Force @ Maximum Frequency:Â 8,000lbs
- Baseplate Size:Â 22″ x 36″
C25
Excavators from 16 up to 25 tons
- Operating Weight: 1900lbs (without mounting bracket)
- Oil Flow Range: 32-45GPM
- Max Pressure: 2900psi
- Vibrating Frequency: 2,200vpm (vibrations per minute)
- Force @ Maximum Frequency: 24,000lbs
- Baseplate Size: 22″ x 36″
C10
Excavators from 5 up to 10 tons
- Operating Weight:Â 820lbs (without mounting bracket)
- Oil Flow Range:Â 12-22GPM
- Max Pressure:Â 2000psi
- Vibrating Frequency:Â 2,000vpm (vibrations per minute)
- Force @ Maximum Frequency:Â 8,000lbs
- Baseplate Size:Â 22″ x 36″
Excavator Compactor Plate Features
- High quality Permco hydraulic motors
- Cross line relief valves means there is no case drain required
- Replaceable rubber damping pads
- HB450 Material compaction plate for maximum wear resistance
- Hoses included with wire guard protection
- Mounting bracket built to suit your machine/coupler
The Attachment Company manufacturers mounting systems to suit all excavators. Standard lead time for building a double pin mount to suit your excavator is 2 weeks. Other coupler types may vary – you can contact us for an accurate lead time.Â
Warranty Information
The Attachment Company offers a comprehensive warranty on all attachments as we stand behind the quality of the brands that we offer.
All AttachWorx products are warranted to be free from defects in materials or workmanship for the periods summarized below:
- All components: 12 months
For any additional information on the AttachWorx range – visit their website here!

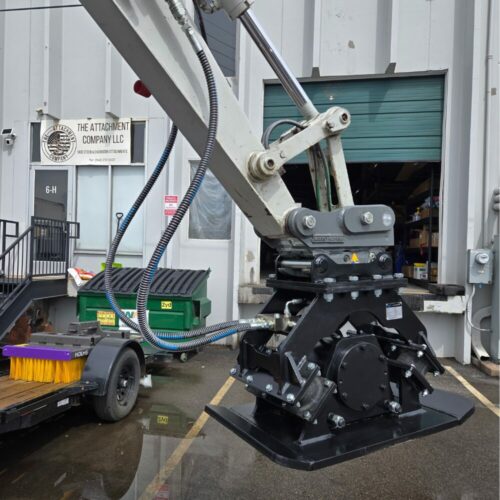

The attachment comes with a compatible mounting bracket that connects to your excavator's arm or coupler.
The AttachWorx compactor range requires 1 single acting hydraulic circuit on the excavator. These plates do not require a case drain.Â
An excavator compactor plate is a heavy-duty attachment designed to be mounted onto an excavator. It exerts powerful downward force to compact various materials like soil, gravel, and asphalt. The compactor plate's vibrations and weight effectively reduce air voids, improving ground stability and preventing settling over time.
Using an excavator compactor plate offers several advantages, including efficient soil compaction, increased project speed, reduced settling risks, and improved surface durability. It's a cost-effective solution for achieving well-compacted surfaces in construction, roadwork, landscaping, and other earthmoving tasks.
Regular maintenance is crucial to ensure the longevity and performance of your compactor plate. Keep it clean from dirt and debris, lubricate moving parts as recommended, and inspect for any signs of wear. Follow the manufacturer's maintenance guidelines provided in the product manual.
