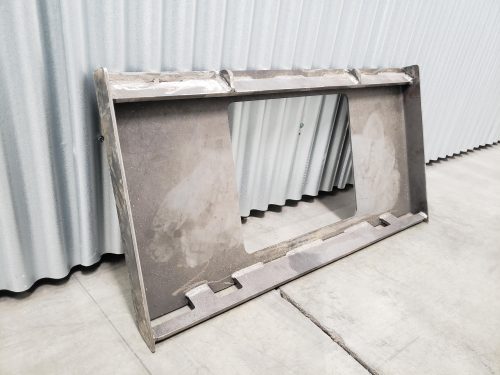

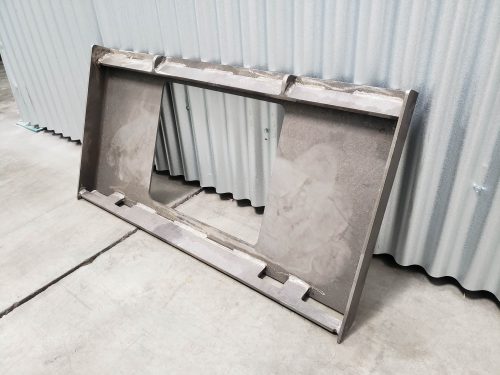

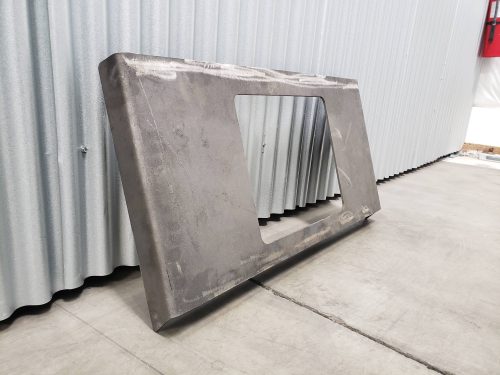

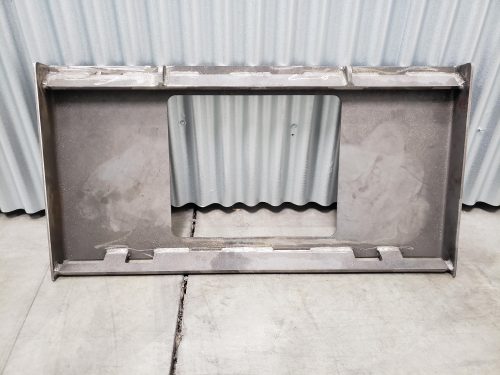

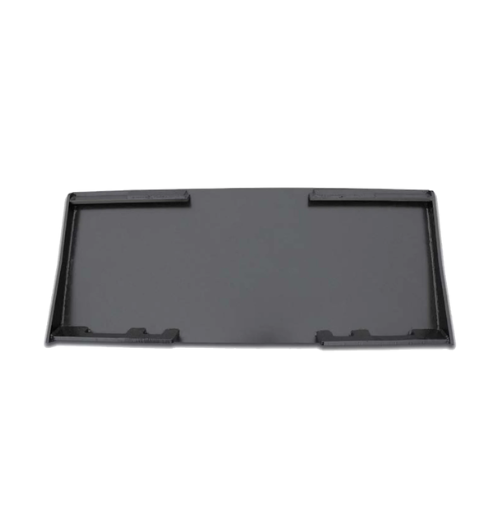

Skid Steer Mounting Plate – Blank – Heavy Duty
Skid Steer Mounting Plate Blanks allow you to manufacture your own universal skid steer mount for your attachments.
- Fits all skid steer loaders with double pin quick attach
- Sand blasted finish to allow immediate welding to your attachments
- Available in 3 different widths
Specifications
Widths: 910mm(36″), 1140mm (45″) & 1220mm (48″)
Weight: 52lbs, 62lbs & 120lbs
Steel Thickness: 5/16″
Capacity: 3000lbs
Warranty Information
The Attachment Company provide a warranty on all attachments!
All The Attachment Company Skid Steer Mounting Plates are warranted for 2 years to be free from defects in materials or workmanship.
Contact us with any questions you may have on (941) 212 0037 or our contact us page here!
These blank skid steer mounting plates are designed to be welded to your attachment. Please ensure to use a qualified welder in order to achieve a strong safe weld for to your attachment. The Attachment Company does not take responsibility for the quality of the mounting to your attachment.
The mounting plates all mount to your machine the same way - they are just different total widths. Wider plates are better for larger attachments so that there is more welding/strength on the attachment side.
These universal mounting plates are designed to be used with all attachments. Some attachments do not suit a welded mount and are better to be bolted on. Some other attachments require an angled mount between the mounting plate and the attachment to ensure that it is picked up easily.
