Description
Truck Crane Auger Drive for Truck Cranes with up to 14GPM.

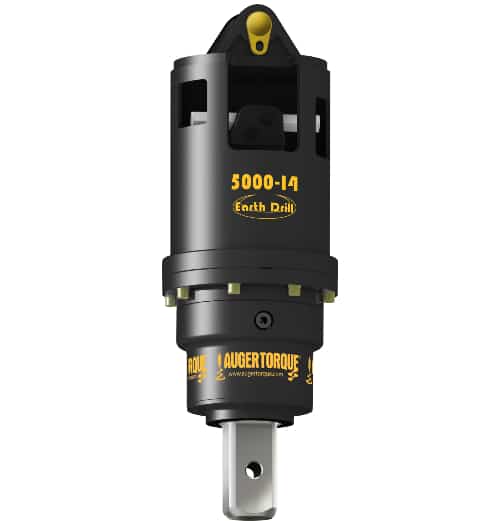

Our model 5000-14 Truck Crane Auger Drive uses a specially designed planetary gearbox to take the low flow of most truck cranes and produce enough torque to drive a 36” auger bit. If you have a special attachment inquiry or are unsure of your machine’s compatibility with a particular attachment, please do not hesitate to contact us or call or text (941) 212-0037.
Drives for truck cranes use a specially designed gearbox and motor in order to product more torque and RPM from less hydraulic oil flow than a skid steer or excavator.

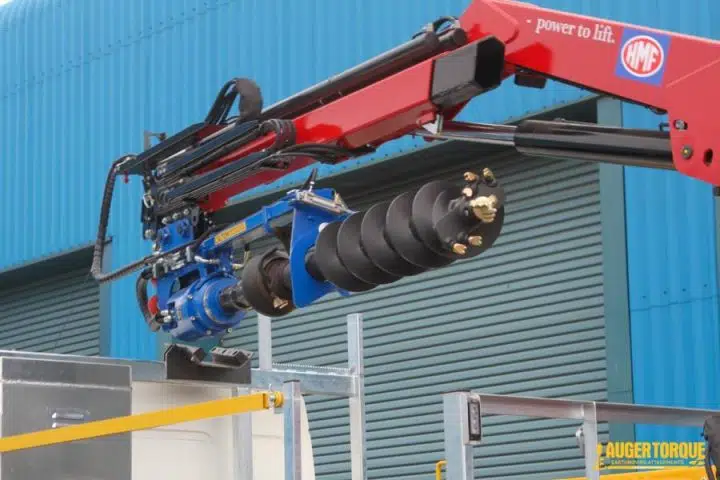

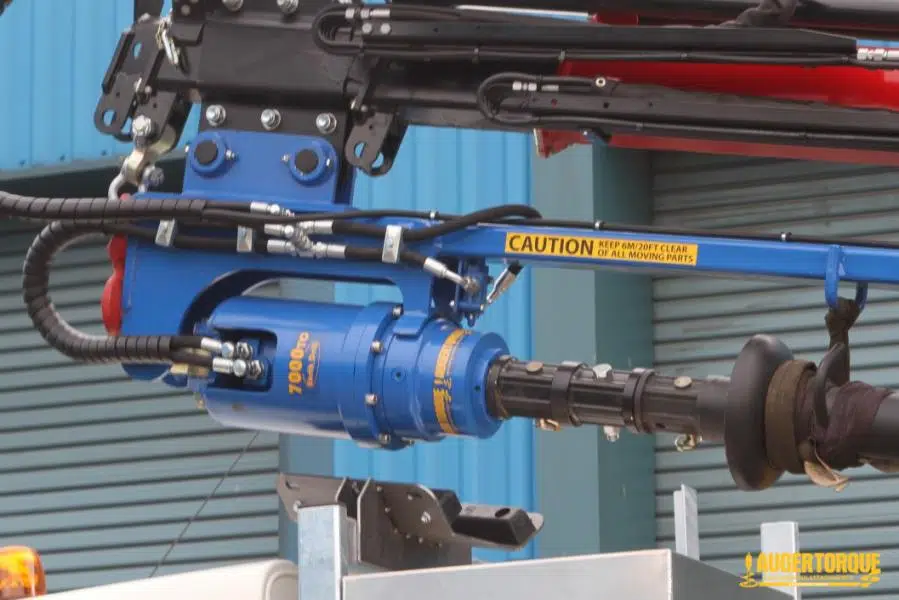

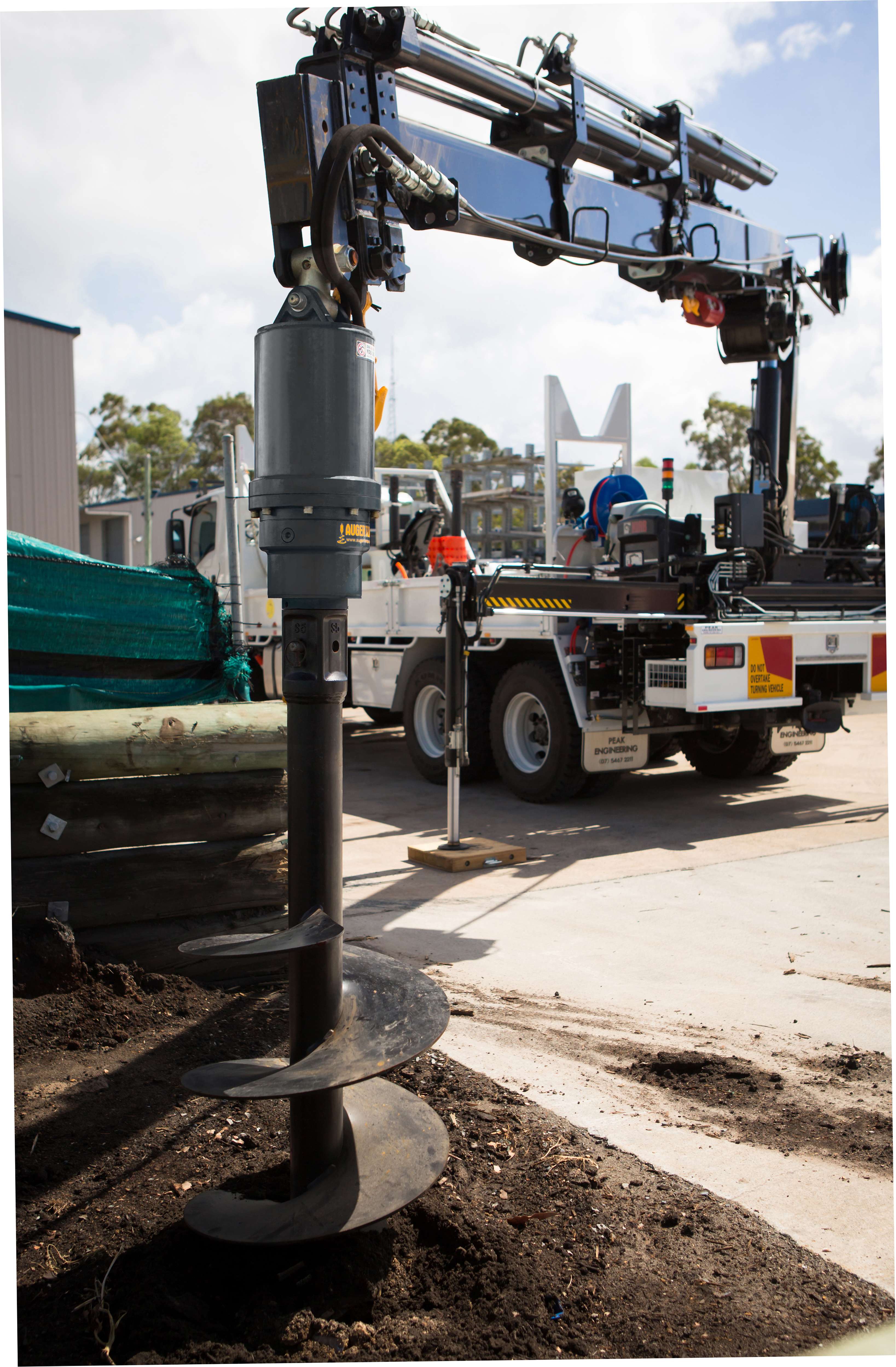

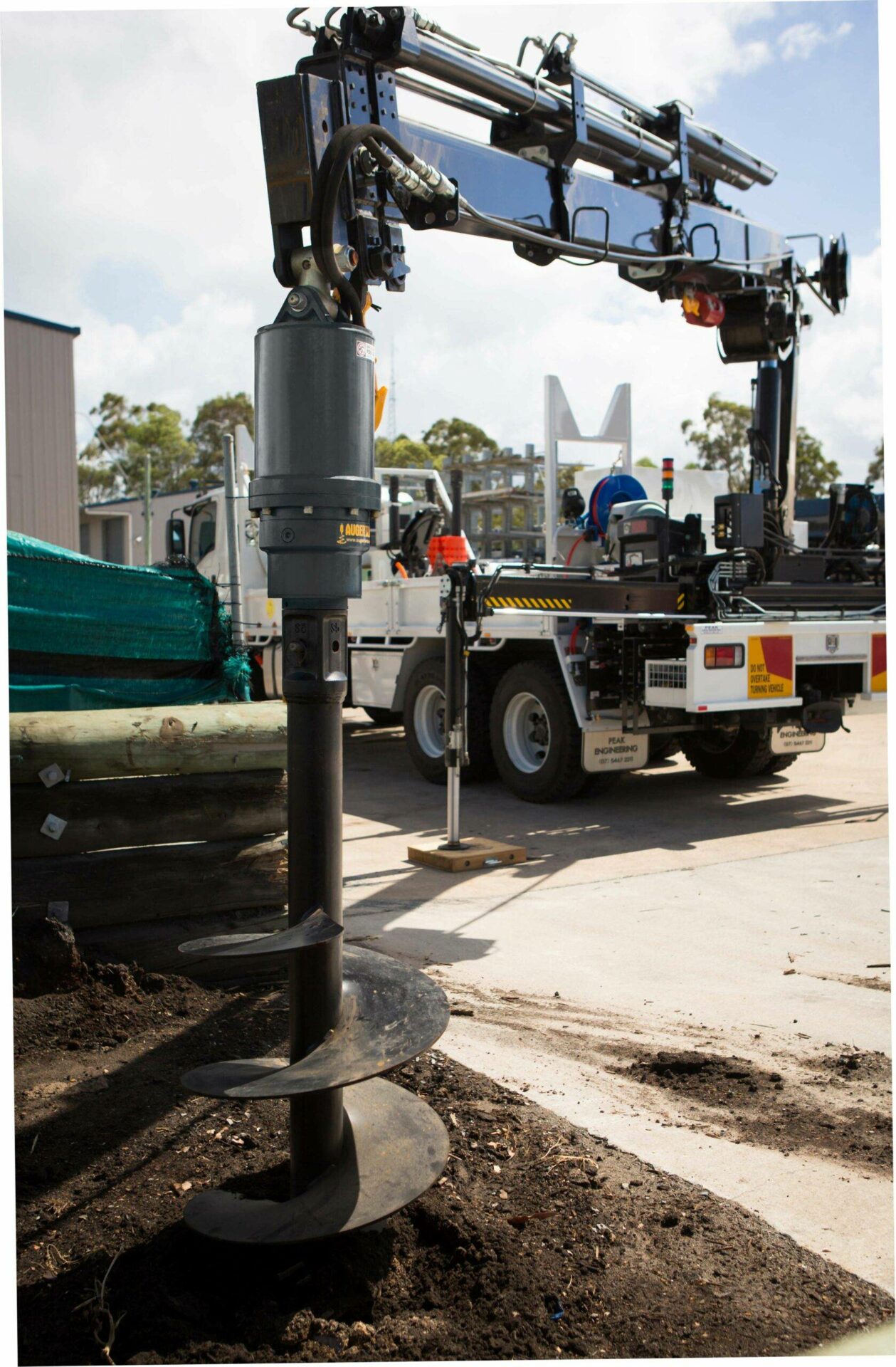

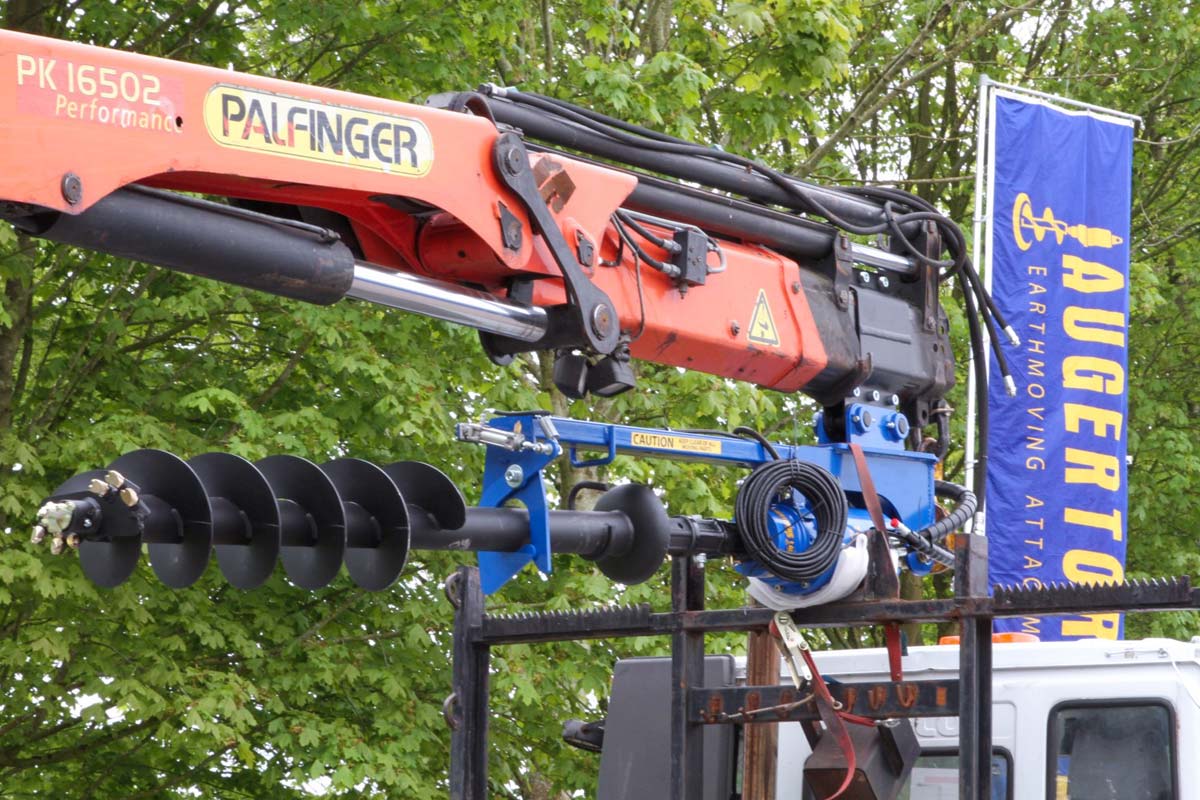

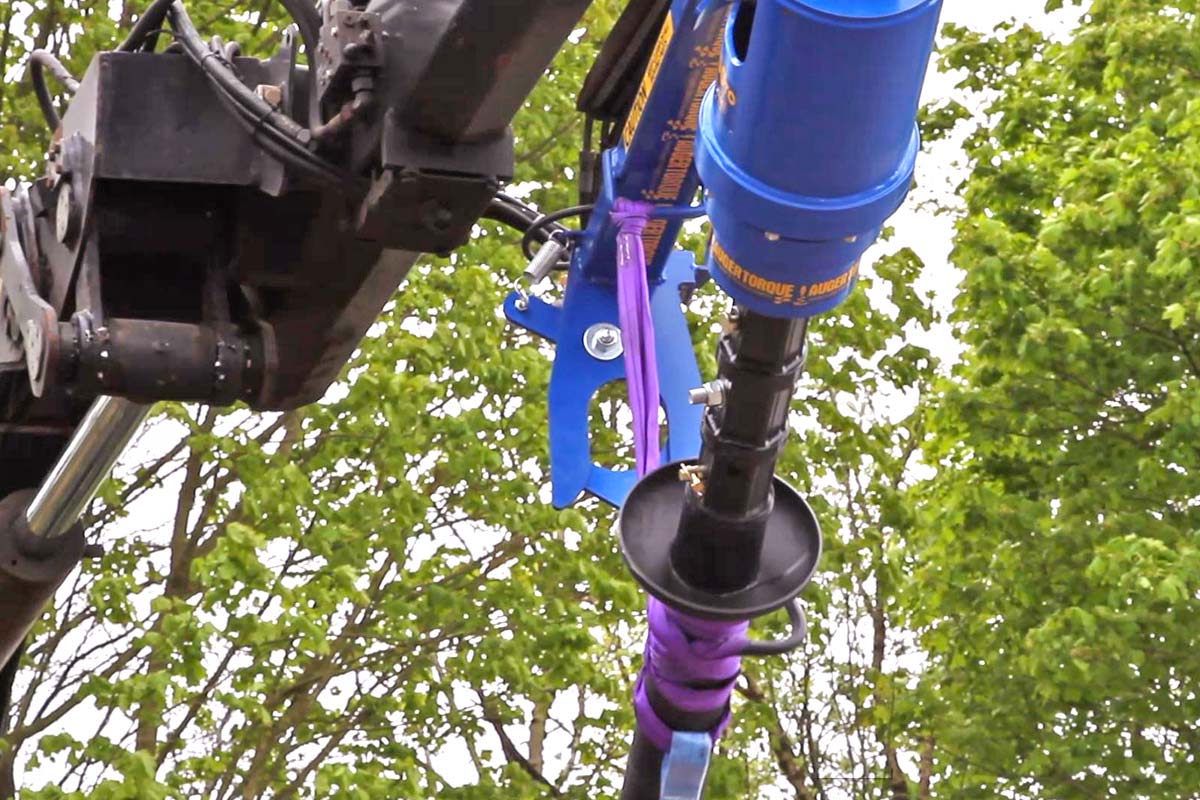

Mounting a drive on a crane can be done via a single pin hitch or a custom built rope wind mount. This allows the setup to be controlled by the crane and is easier to store for transportation etc.
Specifications
Truck Cranes (Digger Derricks) – SUITS S5 AUGERS (2.5″ Hex) – 6 in. – 48 in. Diameter
- Torque Range: 1547 – 5,029ft-lb
- Oil Pressure Range: 1160 – 3771 psi
- Oil Flow Range: 4-14 gpm
- Speed Range: 9-30 rpm
- Unit Height: 31 in.
- Unit Diameter: 12 in.
- Unit Weight: 243 lbs
S5 Augers (2.5″ Hex)
For Augers – 6 in. – 36 in. Diameter
Hitch Options: Single Pin Hitch
Rope Wind Hitch (Rope Wind Hitches require fabrication – contact us for lead time)
- Output Shaft: 2.5” Hex
- Optional Extras: 2 Way Valve
- Output Shaft : 2.96 in. Square
Features
Forged Hood Ears
Auger drives take up a lot of stress in certain areas, especially the hood and ears on top of the unit. These are forged pieces to endure the strain of drilling. Hood pins are also locked into place to ensure they never detach from the auger drive.
Hose & Coupler Options
All of our S4 auger drives (2” hex) come with high quality hoses and couplers included.
Larger auger drive units come with hoses to match the motor size of the unit.
6000-40 (2.5” hex) drive come with ¾” hoses
11000-45 to 18500-45 (3” square) drives come with 1” hoses.
High Quality Hydraulic Motors
Auger Torque’s huge buying power means we work closely with high quality suppliers to develop the most reliable attachments available on the market today

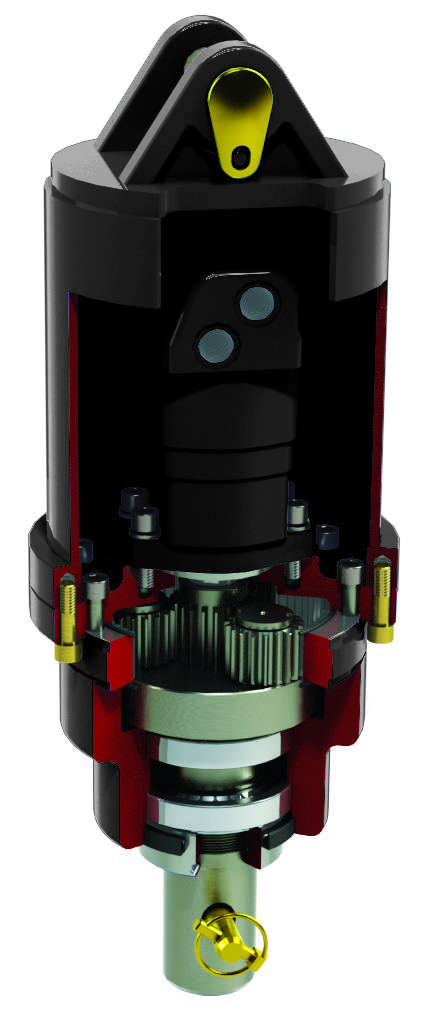

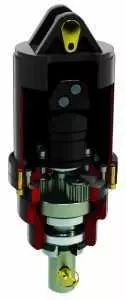

Epicyclic Gearbox
Auger Torque manufactures their own planetary gearbox. The unique design features the non-dislodgement shaft design, and maximizes the final output torque of the unit at the operating hydraulic pressure. Manufacturing their own gearbox allows Auger Torque to maintain high quality and reliability that you depend on for your attachments.
Non-Dislodgement Shaft
One unique feature of the auger torque range is the non-dislodgement shaft. The gearbox design of each Auger Torque drive ensures that the output shaft is locked in place and will NEVER fall out of the gearbox housing.
We offer a lifetime guarantee against the shaft falling out of your auger drive.
Warranty Information
We provide replacement warranty units for the coverage listed below.
All Auger Torque products are warranted for the periods below:
- Planetary Gearbox Components – 72 Months
- Hydraulic Motors – 36 Months
- All Other Parts / Products – 24 Months
For any additional information on the Auger Torque range, you can visit their website here!
