Description

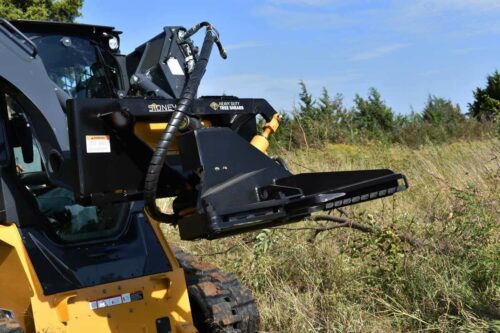

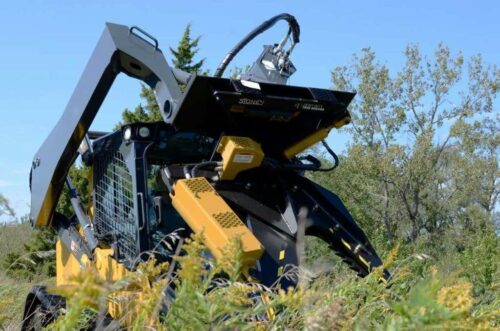

Skid Steer Tree Shear Attachment from Sidney Attachments!
The Sidney Skid Steer Tree Shear is the perfect addition for skid steers that can clear trees up to 16″ in diameter. With three options depending on application and budget you can select the correct tree shear to suit your needs.
If you have a special attachment inquiry or are unsure of your machine’s compatibility with a particular attachment, please do not hesitate to contact us on (941) 212-0037.
Tree Shear Specifications
Model: TBL1000
- Rated Capacity: 10″ diameter
- Weight: 655lbs
- Blade Cylinder Size: 4″ x 18″
- Tilt Cylinder: 3″ x 8″
- Solenoid: 12v
- Blade Material: “T1” Steel
Model: HTC14
- Rated Capacity: 14″ diameter
- Weight: 1,280lbs
- Blade Cylinder Size: 5.5″ x 18″
- Tilt Cylinder: 3″ x 8″
- Solenoid: 12v
- Blade Material: “T1” Steel
Model: HTC16
-
- Rated Capacity: 16″ diameter
- Weight: 1,300lbs
- Blade Cylinder Size: 6″ x 18″
- Tilt Cylinder: 3″ x 8″
- Solenoid: 12v
- Blade Material: “T1” Steel
All Models:
- Wiring: Standard wiring kit is provided
Shear Features
- Cut trunks in a single pass, flush with the ground
- Hydraulic tilt cylinder rotates up to 110 degrees to move cut trees
- Major pivot points are machined and greasable for long lasting life
- Shear is made from 1″ high tensile steel plate
- The single blade design encourages trees to fall the direction of the blade’s travel
- Serrated jaw grips tree to allow all power to be applied to the blade
- Blade Cylinder is rated for 3,000psi operating pressure
- Single 1-1/4″ blade
- Comes standard with Universal Skid Steer Attach
Warranty Information
The Attachment Company provide 2 year warranty on all tree shear attachments!
This excludes wear parts like teeth and blades etc.
For any additional information on the Sidney Attachment range, you can visit their website here!
Frequently Asked Questions
How do you rotate the tree sheer?
The tree shear comes with a control kit that allows you to switch the hydraulic oil flow from the cutting function to the rotation function.
How can I control the direction that the tree falls when cutting?
By cutting from one side, the tree tends to fall sideways. You can angle the shear forward – away from the cab – and the tree will fall forward away from the machine.
What is the hydraulic GPM requirement for the shear?
We recommend at least 10GPM hydraulic oil flow to operate the shear properly. And also 3,000psi hydraulic oil pressure.
Request a Quote for a Tree Shear below!
Please include as much details as possible, including machine make & model.
Reviews
There are no reviews yet.
