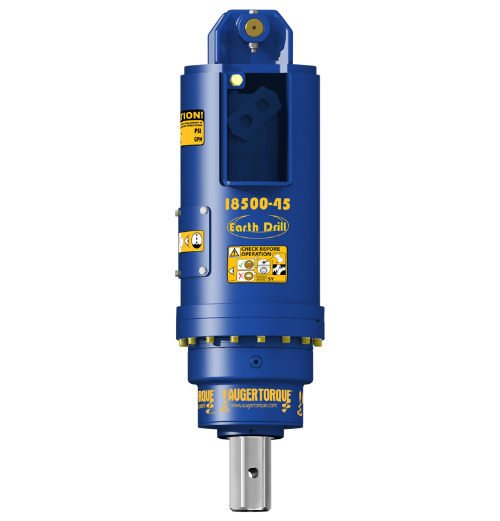

18500-45 Auger Drive – Excavators up to 50,000 lbs (25 Ton)

In Stock

$8,785.00$10,899.00

SKU: 21-4544106507S2616 Category: Tags: , , Manufacturer:
(1 Customer Review)

EXCAVATORS up to 25 tons!
S6 Augers (3″ Square): 6 in. – 60 in. Diameter
Torque Range: 12,171 – 18,257 ft-lb
Oil Pressure Range: 2,321 – 3,481 psi
Oil Flow Range: 21 – 45 gpm
Speed Range: 12 – 26 rpm

We will build the mount custom to fit any excavators in this weight range. Standard lead time is roughly 2 weeks to do so.

Contact us for auger size availability and complete package deals (941) 212-0037

Description

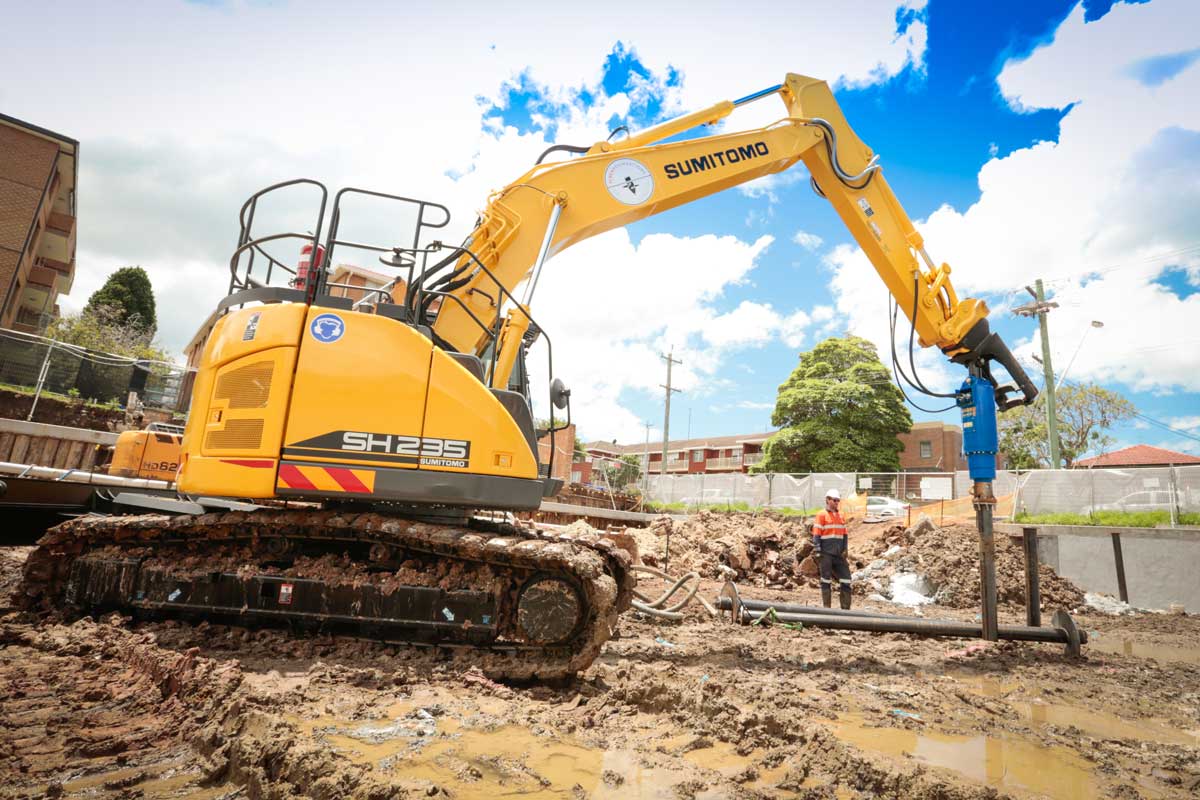

Large Excavator Auger Drive for Machines up to 25 tons

Our Large Excavator Auger Drive gives you enough torque to drive a 60″ auger as deep as 10ft. If you have a special attachment inquiry or are unsure of your  machine’s compatibility with a particular attachment, please do not hesitate to contact us on (941) 212-0037.

We can build the mount to suit your specific excavator or you can purchase the drive only!

Choose your auger to suit this auger drive here!

EXCAVATORS UP TO 50,000LBS – S6 AUGERS (3″ Square) – 6 in. – 60 in. Diameter

Torque Range: 12,171 – 18,257 ft-lb
Oil Pressure Range: 2,321 – 3,481 psi

Oil Flow Range: 21 – 45 gpm
Speed Range: 12 – 26 rpm

Unit Height: 45 in.
Unit Diameter: 14 in.
Unit Weight: 593 lbs

Hitch Options: Single Pin Hitch
Double Pin Hitch
Double Pin Cradle Hitch (recommended)

Optional Extras: Pressure Relief Valve 2 Way Valve
Output Shaft : 2.96 in. Square

Suits our S6 Augers (3″ Square)
6 in. – 60 in. Diameter

Suitable Excavators for the 18500-45 (as a guideline):

Bobcat E165
CAT 316, 320, 325
CASE CX160, CX200, CX210
Doosan DX180, DX225
JCB JS160, JS200
John Deere/Hitachi 160G, 200G, 210G
Link Belt 160×4, 210×4
Komatsu PC160, PC200, PC210
Sany SY210
Takeuchi TB2150
Volvo EC160, EC200, EC220

Drive Features

Forged Hood Ears

Auger drives take up a lot of stress in certain areas, especially the hood and ears on top of the unit. These are forged pieces to endure the strain of drilling. Hood pins are also locked into place to ensure they never detach from the auger drive.

Epicyclic Gearbox

Auger Torque manufactures their own planetary gearbox. The unique design features the non-dislodgement shaft design, and maximizes the final output torque of the unit at the operating hydraulic pressure. Manufacturing their own gearbox allows Auger Torque to maintain high quality and reliability that you depend on for your attachments.

Forged Hood Ears

Auger drives take up a lot of stress in certain areas, especially the hood and ears on top of the unit. These are forged pieces to endure the strain of drilling. Hood pins are also locked into place to ensure they never detach from the auger drive.

Epicyclic Gearbox

Auger Torque manufactures their own planetary gearbox. The unique design features the non-dislodgement shaft design, and maximizes the final output torque of the unit at the operating hydraulic pressure. Manufacturing their own gearbox allows Auger Torque to maintain high quality and reliability that you depend on for your attachments.

High Quality Hydraulic Motors

Auger Torque’s huge buying power
means we work closely with high
quality suppliers to develop the most
reliable attachments available on the
market today

Warranty Information

Auger Torque provides a leading warranty for auger drive components as shown below. This includes LIFETIME parts replacement warranty on the dislodgement of the drive output shaft.

All Auger Torque products are warranted for the periods summarized below:

  • Gearbox Components – 72 Months
  • Hydraulic Motors – 36 Months
  • All Other Parts / Products – 24 Months

For any additional information on the Auger Torque range, you can visit their website here!
