SKU: 21-5060000604S3500

35,000MAX Auger Drive – Excavators up to 90,000lbs (45 Tons)

$16,035.00

EXCAVATORS UP TO 45 TONS!
PA Augers – 12 in. – 60 in. Diameter
Torque Range: 15,121 – 26,053 ft-lbs (20501- 35323 Nm )
Oil Pressure Range: 2,610 – 4,496 psi
Oil Flow Range: 25 – 60 GPM
Speed Range: 11 – 31 rpm

We will build the mount custom to fit any excavators in this weight range and also augers are built to order. Standard lead time is roughly 4 weeks to do so. Contact us for auger size availability and complete package deals! [email protected] or (941) 212-0037

Quantity

Description

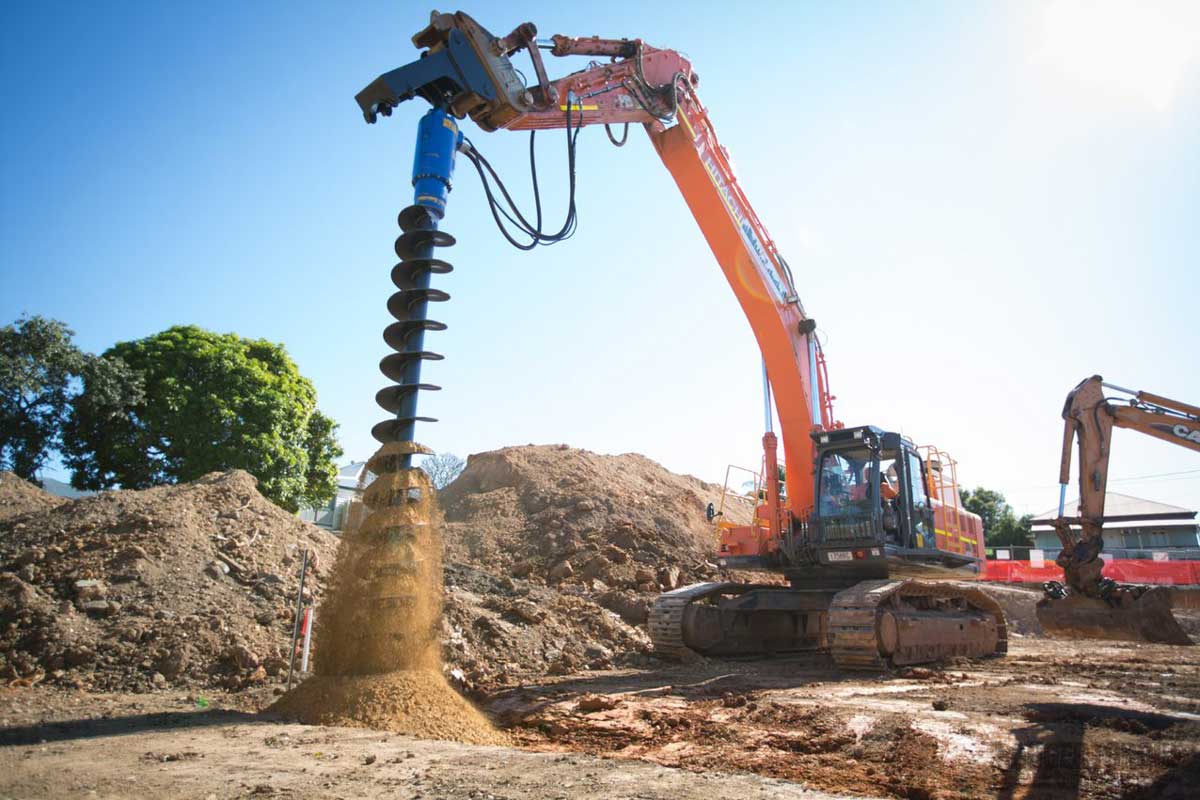

Large Excavator Auger Drive for Machines up to 45 tons!

The 35,000MAX is part of the PA series built by Auger Torque. The largest range of auger drives available in the US.

This Excavator Auger Drive from Auger Torque outputs up to 26,000ft-lbs of torque – enough to drive a a 60″ auger as deep as 20ft.

Excavator mounts are built to suit your specific excavator or you can purchase the drive only and fabricate your own setup!

If you have a special attachment inquiry or are unsure of your  machine’s compatibility with a particular attachment, please do not hesitate to contact us on (941) 212-0037.

Auger Drive Specifications

FOR EXCAVATORS UP TO 90,000LBS – PA AUGERS w/ 4.33″ (110mm Square Shaft) – 12 in. – 60 in. Diameter

Torque Range: 15,121 – 26,053 ft-lbs (20501- 35323 Nm )
Oil Pressure Range: 2,610 – 4,496 psi

Oil Flow Range: 25 – 60 GPM
Speed Range: 11 – 31 rpm

Unit Height: 55 in. (1411mm)
Unit Diameter: 16 in. (406mm)
Unit Weight: 975 lbs (442kg)

Hitch Options: Single Pin Hitch
Double Pin Hitch
Double Pin Cradle Hitch (recommended)

Optional Extras: Pressure Relief Valve 2 Way Valve
Output Shaft : 4.33 in. Square (110mm)

PA Augers
12 in. – 60 in. Diameter

Suitable Excavators for the 35,000MAX (as a guideline):

CAT  325, 330, 345
CASE  CX210, CX240, CX290 , CX330
Doosan DX225, DX300, DX340
JCB JS200, JS300
John Deere/Hitachi 210G, 250G, 300G
Link Belt 210×4, 240×4, 340×4
Kobelco SK220, KX290, SK330
Komatsu PC210, PC290, PC300, PC360
Volvo ECR220, ECR240, ECR290, ECR330

Auger Features

Forged Hood Ears

Auger drives take up a lot of stress in certain areas, especially the hood and ears on top of the unit. These are forged pieces to endure the strain of drilling. Hood pins are also locked into place to ensure they never detach from the auger drive.

Hose & Coupler Options

All of our S4 auger drives (2” hex) come with high quality hoses and couplers included.
Larger auger drive units come with hoses to match the motor size of the unit.
6000-40 (2.5” hex) drive come with ¾” hoses
11000-45 to 18500-45 (3” square) drives come with 1” hoses.

High Quality Hydraulic Motors

Auger Torque’s huge buying power means we work closely with high quality suppliers to develop the most reliable attachments available on the market today

Epicyclic Gearbox

Auger Torque manufactures their own planetary gearbox. The unique design features the non-dislodgement shaft design, and maximizes the final output torque of the unit at the operating hydraulic pressure. Manufacturing their own gearbox allows Auger Torque to maintain high quality and reliability that you depend on for your attachments.

Non-Dislodgement Shaft

One unique feature of the auger torque range is the non-dislodgement shaft. The gearbox design
of each Auger Torque drive ensures that the output shaft is locked in place and will NEVER fall out of the
gearbox housing.

We offer a lifetime guarantee against the shaft falling out of your auger drive!

Warranty Information

We provide replacement warranty units for the coverage listed below.

All Auger Torque products are warranted for the periods below:

  • Planetary Gearbox Components – 72 Months
  • Hydraulic Motors – 36 Months
  • All Other Parts / Products – 24 Months

For any additional information on the Auger Torque range, you can visit their website here!
