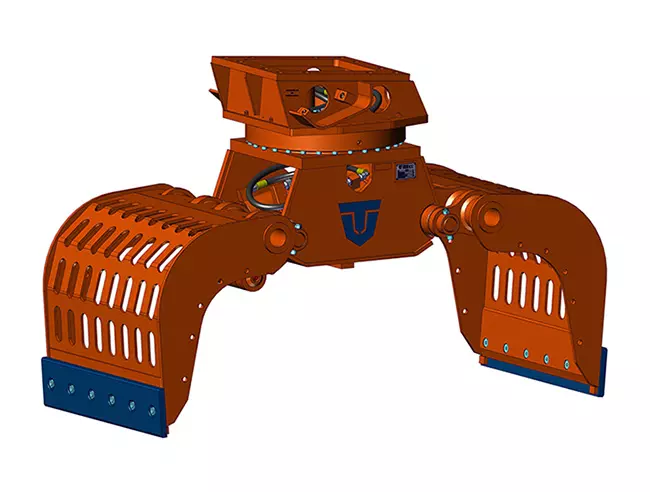

DEMOLITION AND SORTING GRAB PMZ SERIES

Selector grapple for both the demolition of medium-sized structures and for the handling and selection of various materials.

Recommended for:
– demolition and primary stripping works of low consistency and resistance buildings
– targeted selection and loading of the resulting materials on site
– a specific landfill separation
– handling of inert materials in the recycling centers

C version standard with closed grapple shells
S version on request with grapple shells with ribs

  1. Compact HD rotation with double motor excluding PMZ 05 and PMZ 08
  2. Possibility to customize the grapple shells
  3. “Metal plates” on blade for constant wear recovery
  4. Bolt-on reversible blade

pdf download

Share

  • MODELS

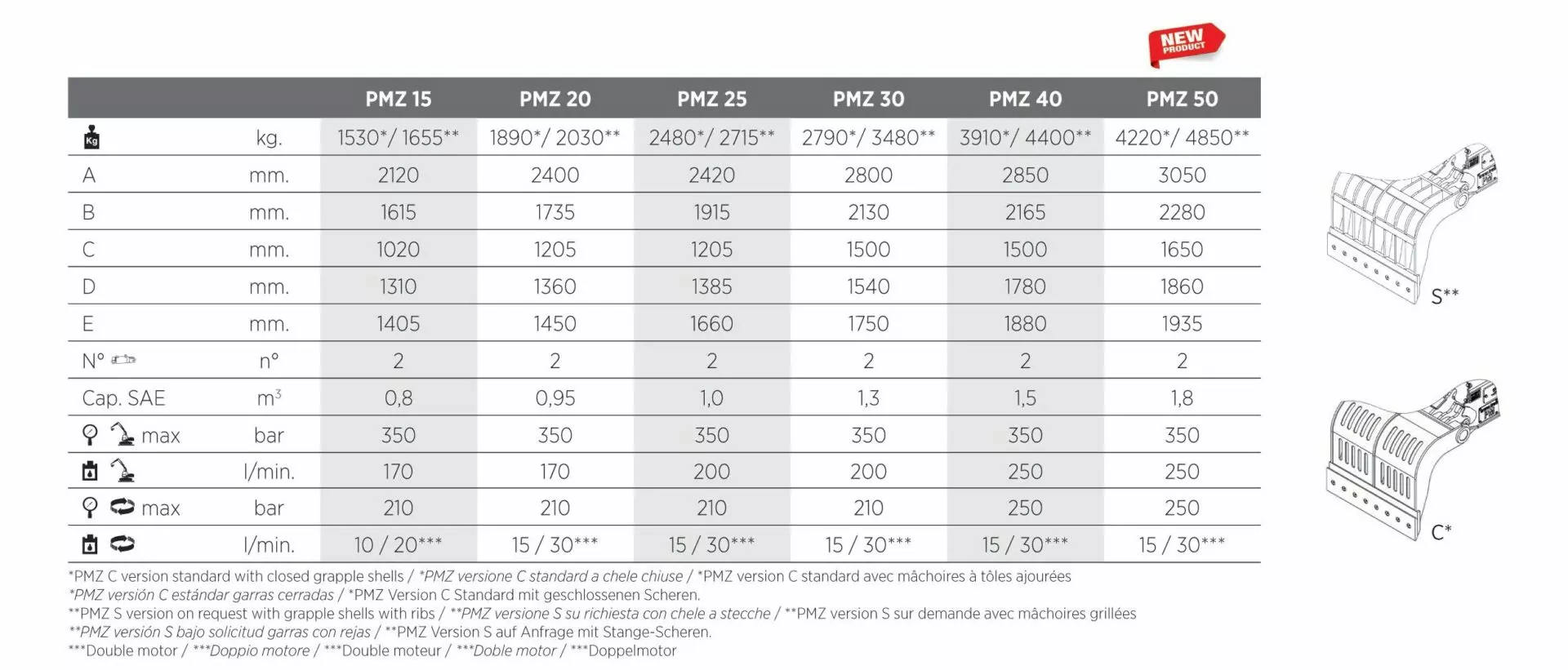

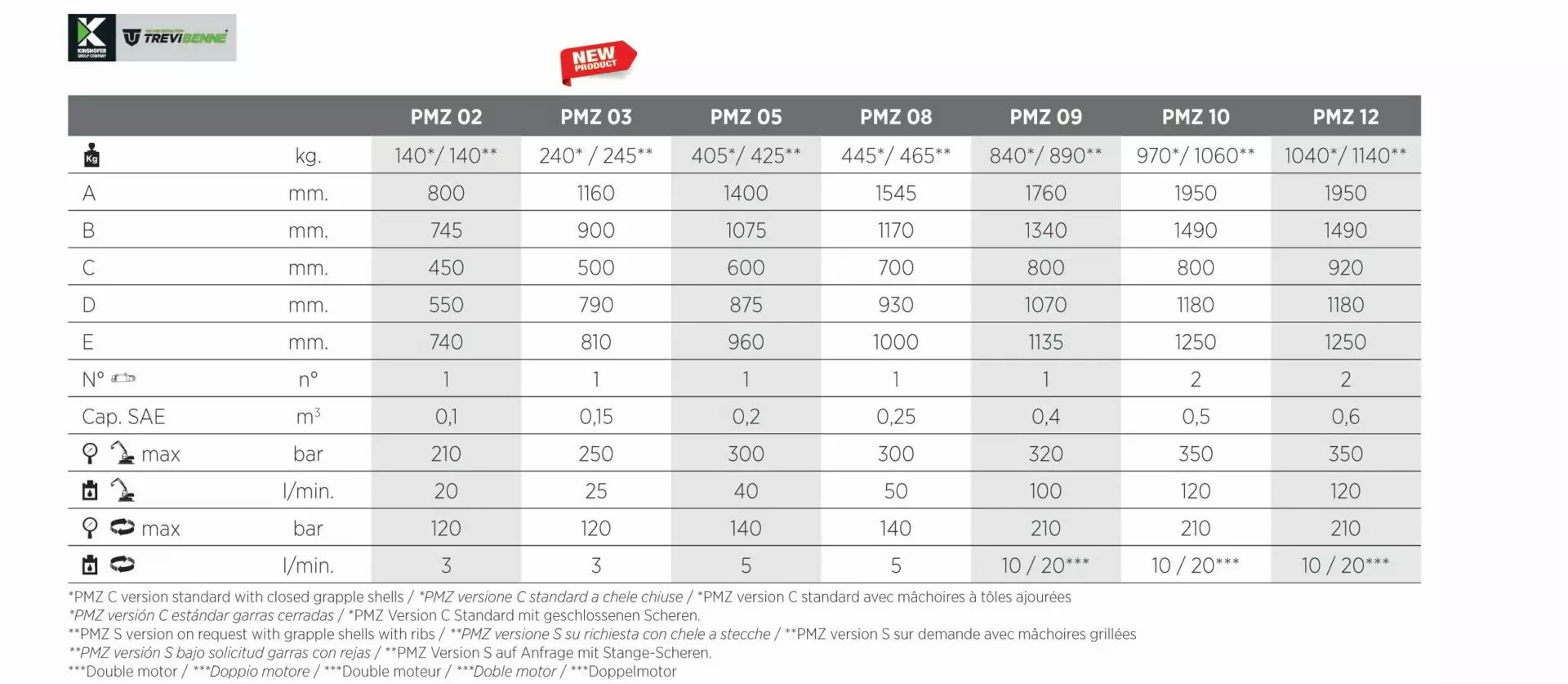

    13 (see the specifications in the data sheet)
  • WEIGHTS

    from 140 to 4.850 kg
  • EXCAVATOR WEIGHTS

    from 2 to 78 ton
  • OPENINGS

    from 800 to 3.050 mm
  • ROTATION

    yes
