Description
Excavator Flail Mower from Cangini Benne – Excavators
The Cangini Excavator Flail Mower is the perfect addition for excavators up to 6-7 tons. Made in Italy – Cangini Attachments are designed and built for heavy duty operations. Ideal for road side clearance of brush and trees as well as land clearing and management of urban green areas like parks and gardens.
Available in the US for excavators up to 7 tons with several different widths and motor options available to suit your machine and application.
If you have a special attachment inquiry or are unsure of your machine’s compatibility with a particular attachment, please do not hesitate to contact us on (941) 212-0037.
Flail Mower Models
TC1 – Excavators up to 3.5 tons
- Available 30″ and 40″ wide – we stock the 40″ wide model.
TC2 – Excavators up to 7 tons
- Available 40″ and 48″ wide – we stock the 48″ wide model.
TC3 – Excavators up to 10 tons
- Available 51″ wide
Each flail mower comes with hammer tools as standard. Blades are also available and can be better suited to lighter applications like long grass and vegetation.
The Attachment Company manufactures mounting systems to suit all excavators. Therefore the standard lead time for building a double pin mount to suit your excavator is 2 weeks. However other coupler types may vary – you can contact us for an accurate lead time.
Mower Specifications
TC1 Specifications

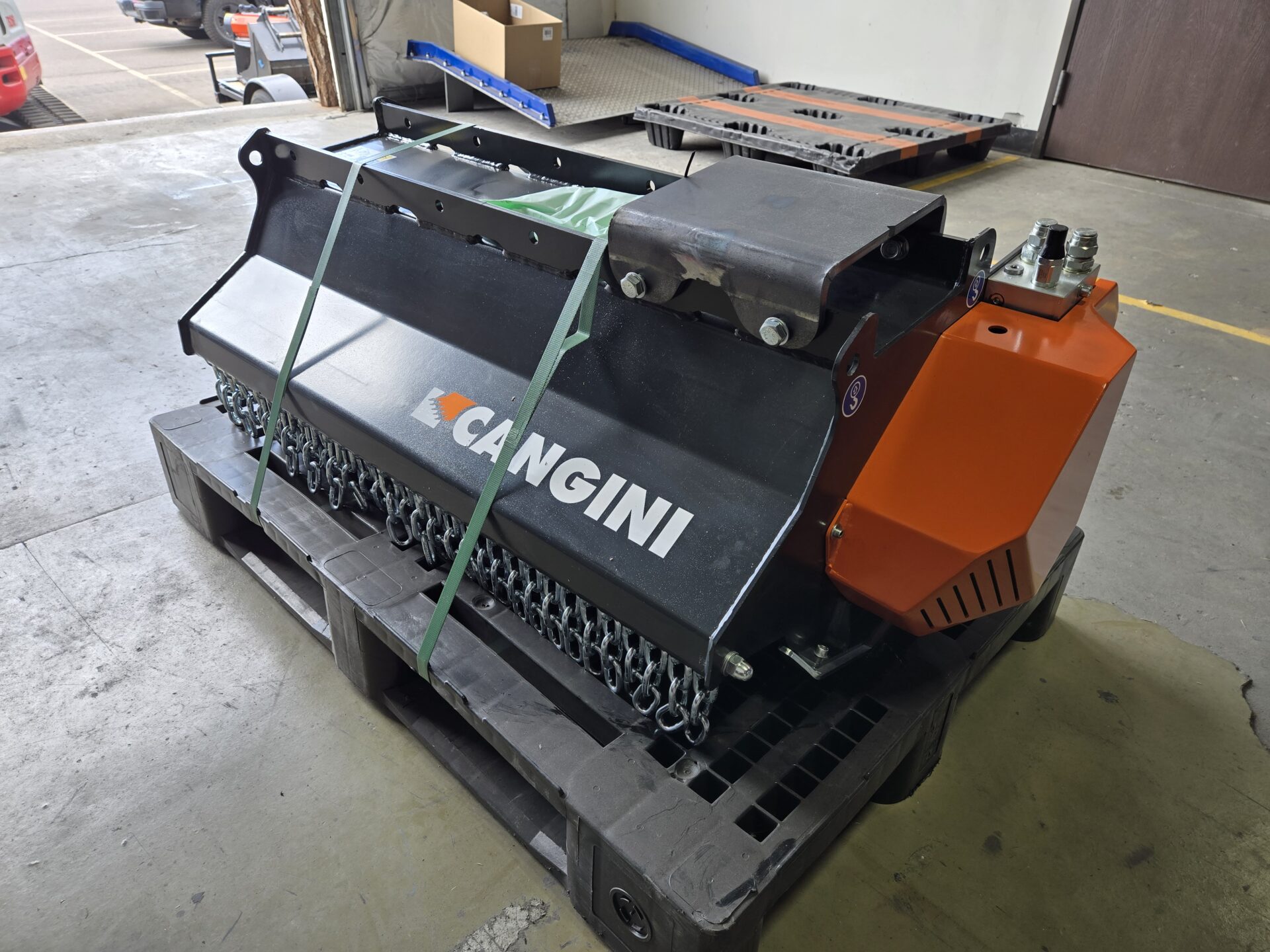

- Weights: TC1-100 (40″) – 276lbs without machine mount
- Oil Flow Range: 5 – 24GPM
- Max Cutting: Ø 1.5″ to 2″
- Max Pressure: 3,626psi
TC2 Specifications
- Weights: TC2-120 (48″) – 660lbs without machine mount
- Oil Flow Range: 7 – 24GPM
- Max Cutting: Ø 1.5″ to 2.5″
- Max Pressure: 3,626psi
TC3 Specifications
- Weights: TC3-130 (51″) – 908lbs without machine mount
- Oil Flow Range: 15 – 40GPM
- Max Cutting: Ø 2 to 3.5″
- Max Pressure: 4,061psi
Features
1 – Integrated Valve Unit: Throttle, pressure relief and bypass valves
2 – Coupling Adjustment: Machine mount position can be adjusted along the width of the mower
3 – Reinforced Body: Double reinforced body for a higher resistance to shocks/impacts

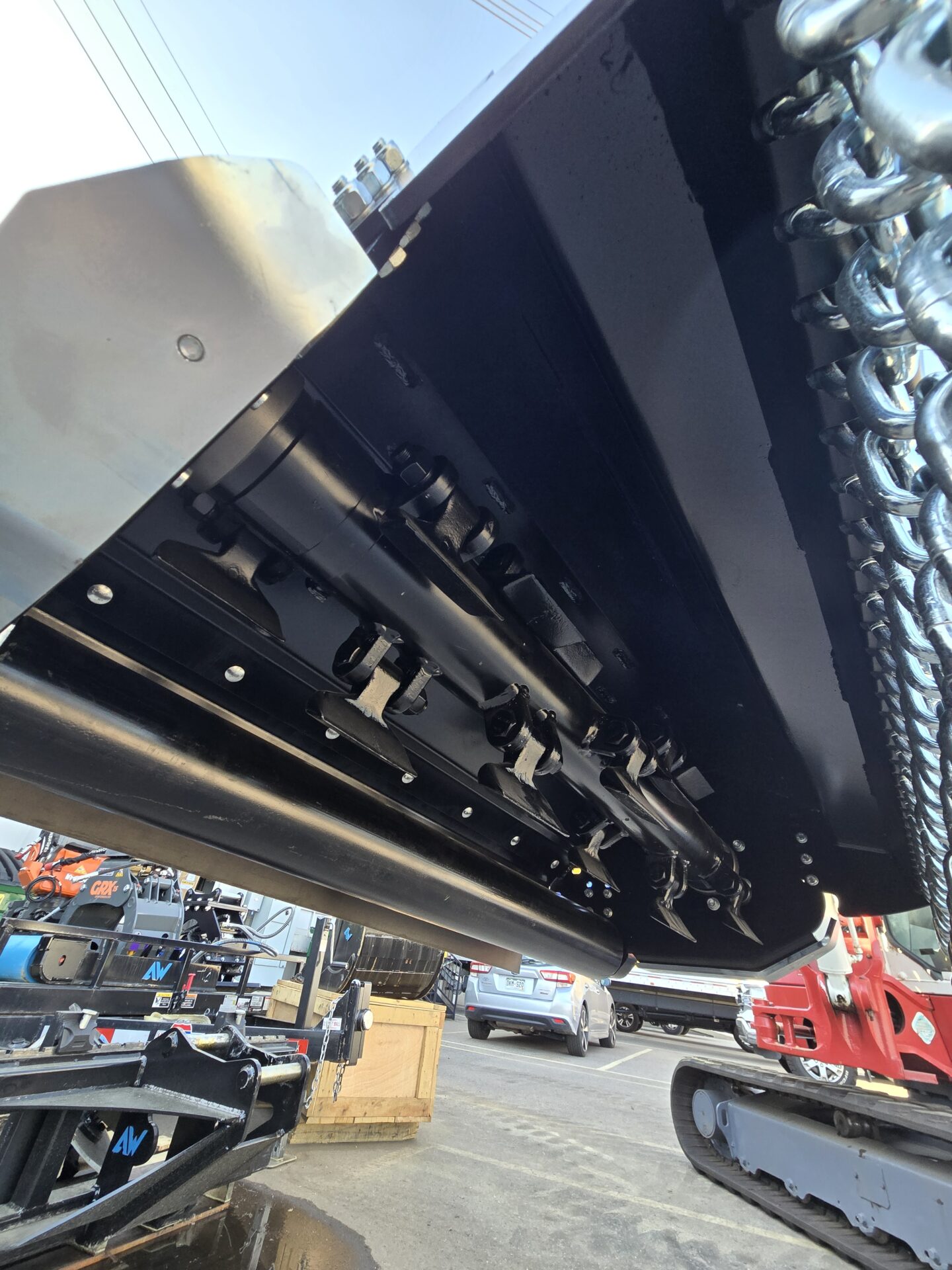

4 – Rotating Shaft with Hammers: Suitable for cutting shrubs and small trees
5 – Rotating Shaft with Blades: Suitable for cutting grass and vegetation
6 – Gear Motor: Motor with reinforced seal in case of back pressure higher than 10 bar
Flail Mower Floating 4 Bar Linkage
4 Bar Linkage Floating System: The floating system enables to mower to follow to contour of the ground with the machine staying at the same level.
Warranty Information
The Attachment Company offers a comprehensive warranty on all attachments as we stand behind the quality of the brands that we offer.
Cangini products are warranted to be free from defects in materials or workmanship for the periods summarized below:
- All components: 24 months
For any additional information on the Cangini range, you can visit their website here!
Using the hydraulics from your excavator - the flail mower uses a hydraulic motor to directly drive the drum that is equipped with hammer tools or blades to cut long grass and brush materials.
Any excavator from 6.5 tons with a 2 way hydraulic circuit for running attachments, can run the flail attachment.
We will custom build a mount to suit your excavators pin diameters, pin centers and dipper stick width. For quick connect coupler style like Kubota, Bobcat Xchange and John Deere - we can also build these mounts to order. Since mounts are custom built, the standard lead time on all mounts is usually up to 2 weeks . However, you can contact us for more accurate lead times!
Cangini is a company that manufacturers attachments in Italy for export all over the world. In 2022, the Kinshofer group, acquired Cangini Attachments. The Attachment Company offers a few of the Kinshofer brands including Auger Torque and Solesbee's as well as Kinshofer's own attachments.
Blades and hammers are replaceable items that are commonly replaced after running the mower for some time and are available directly from us in the US. Similarly all other spare parts are available as needed directly from The Attachment Company.
