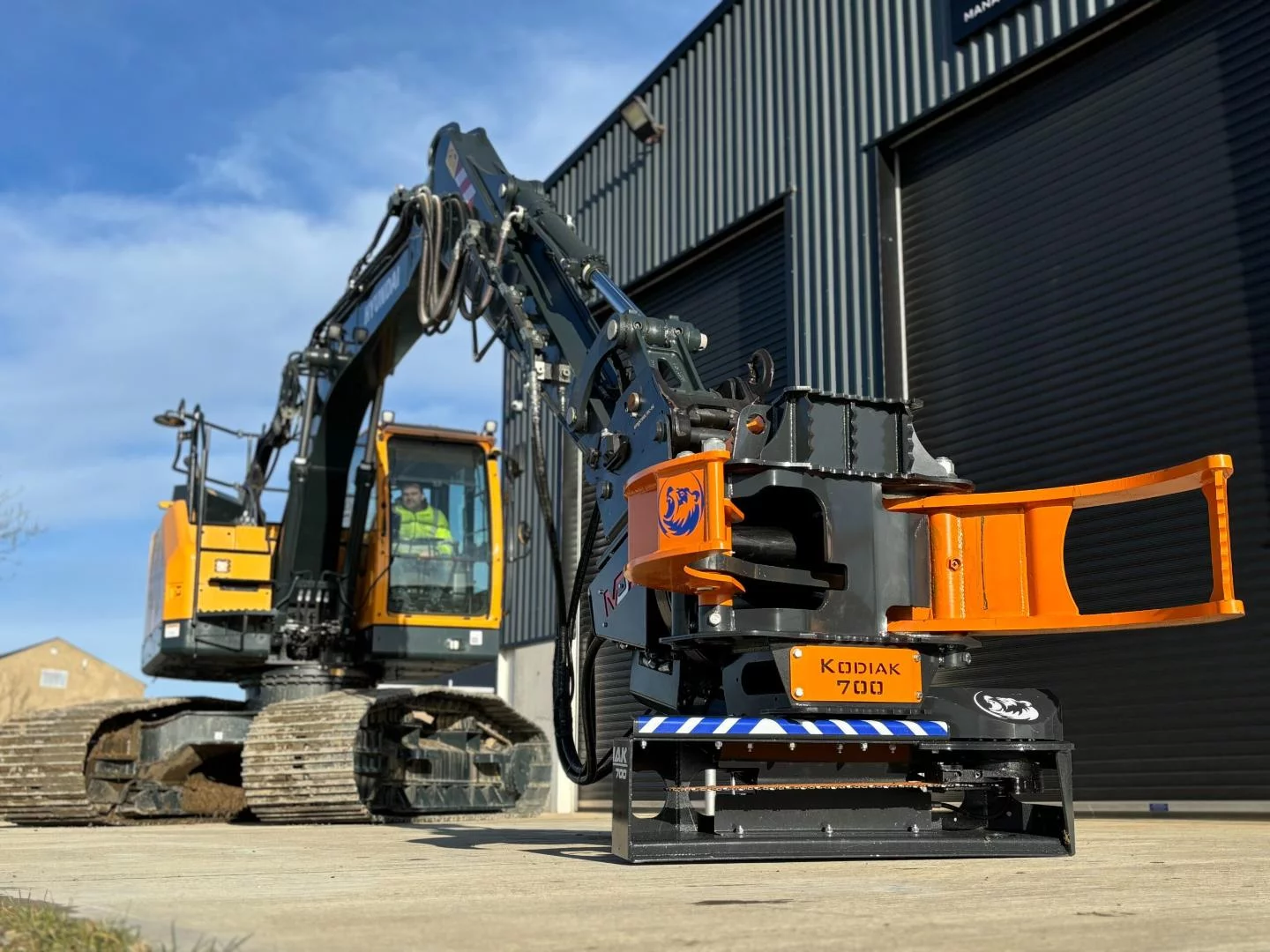

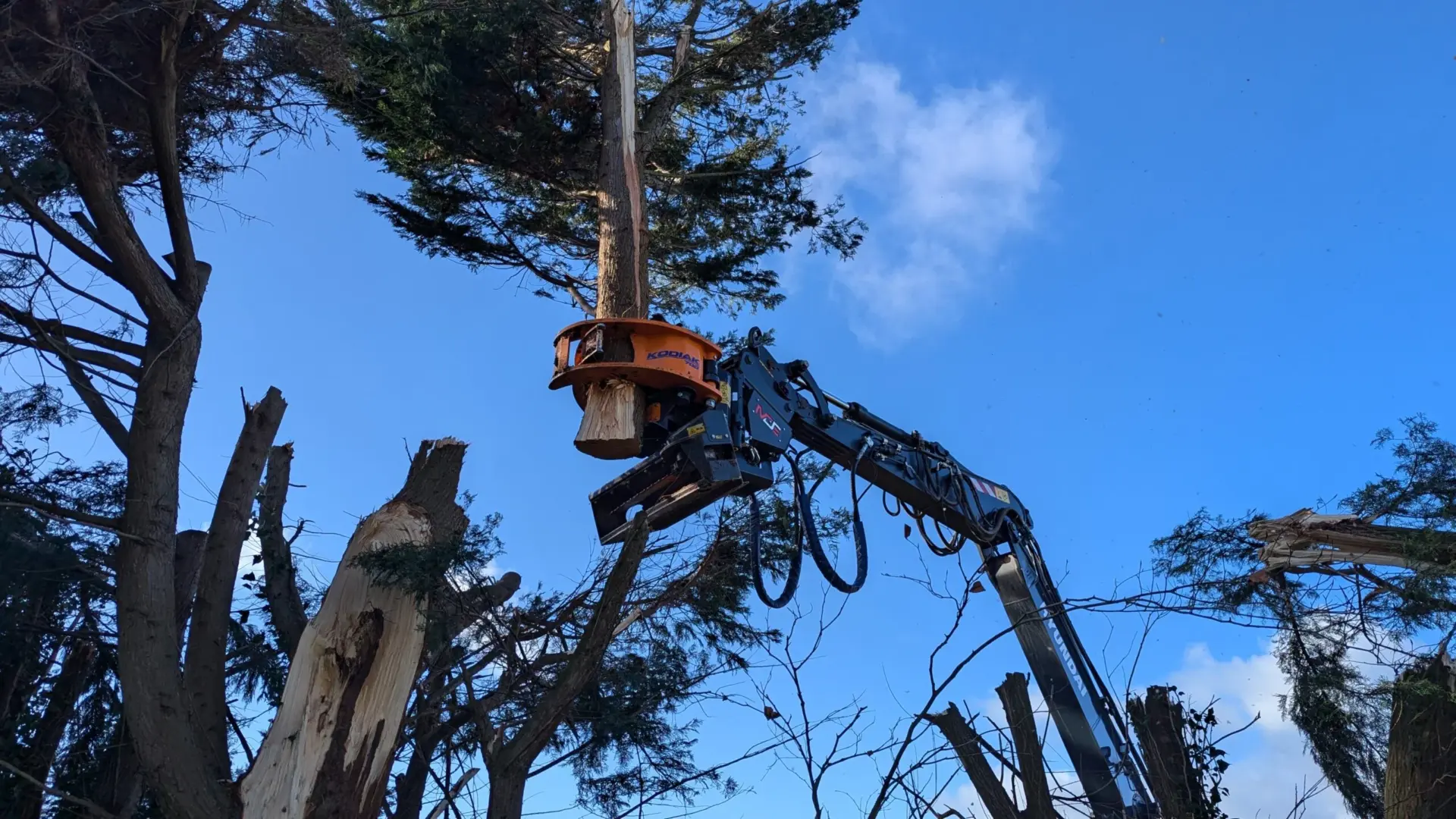

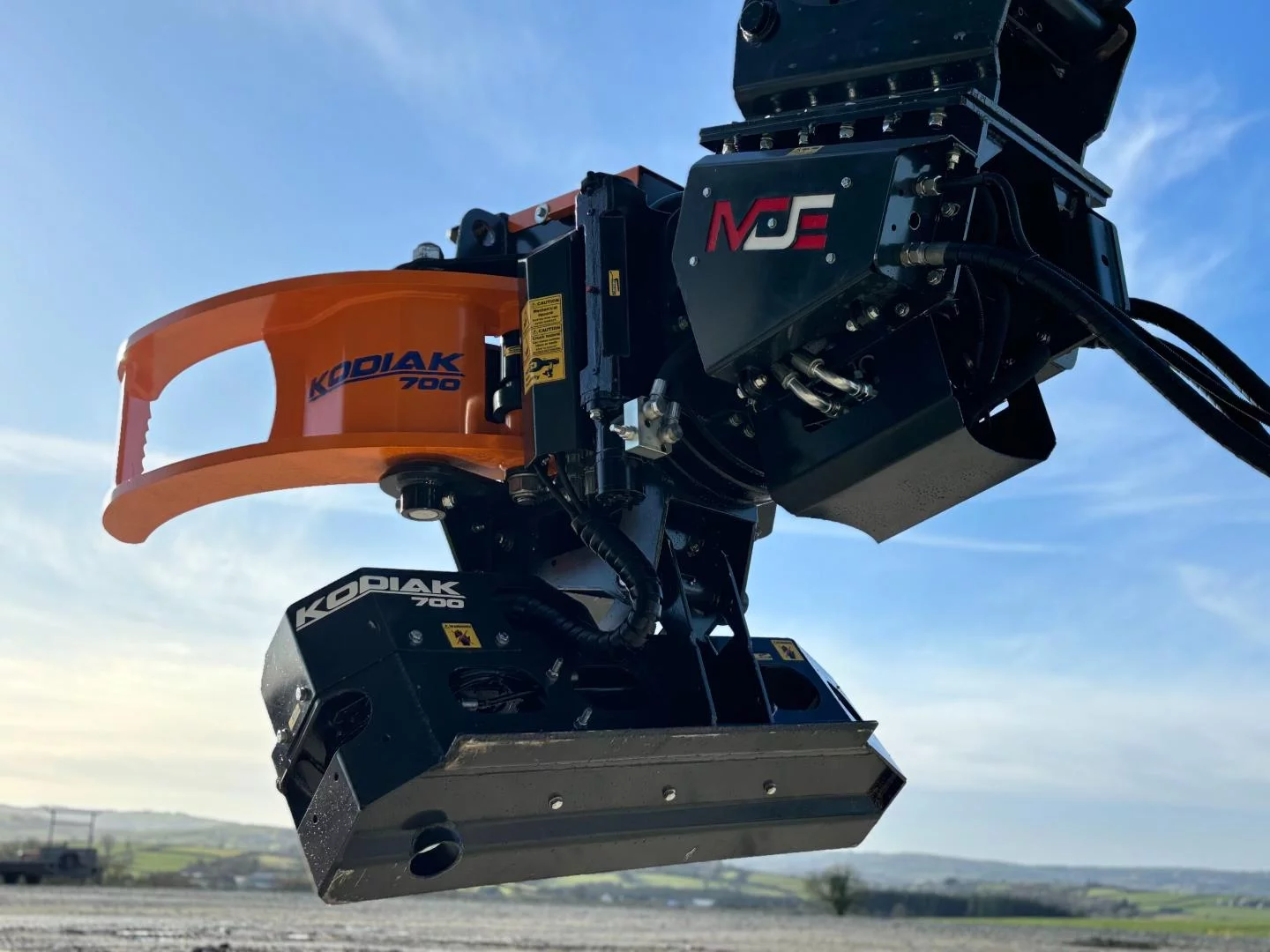

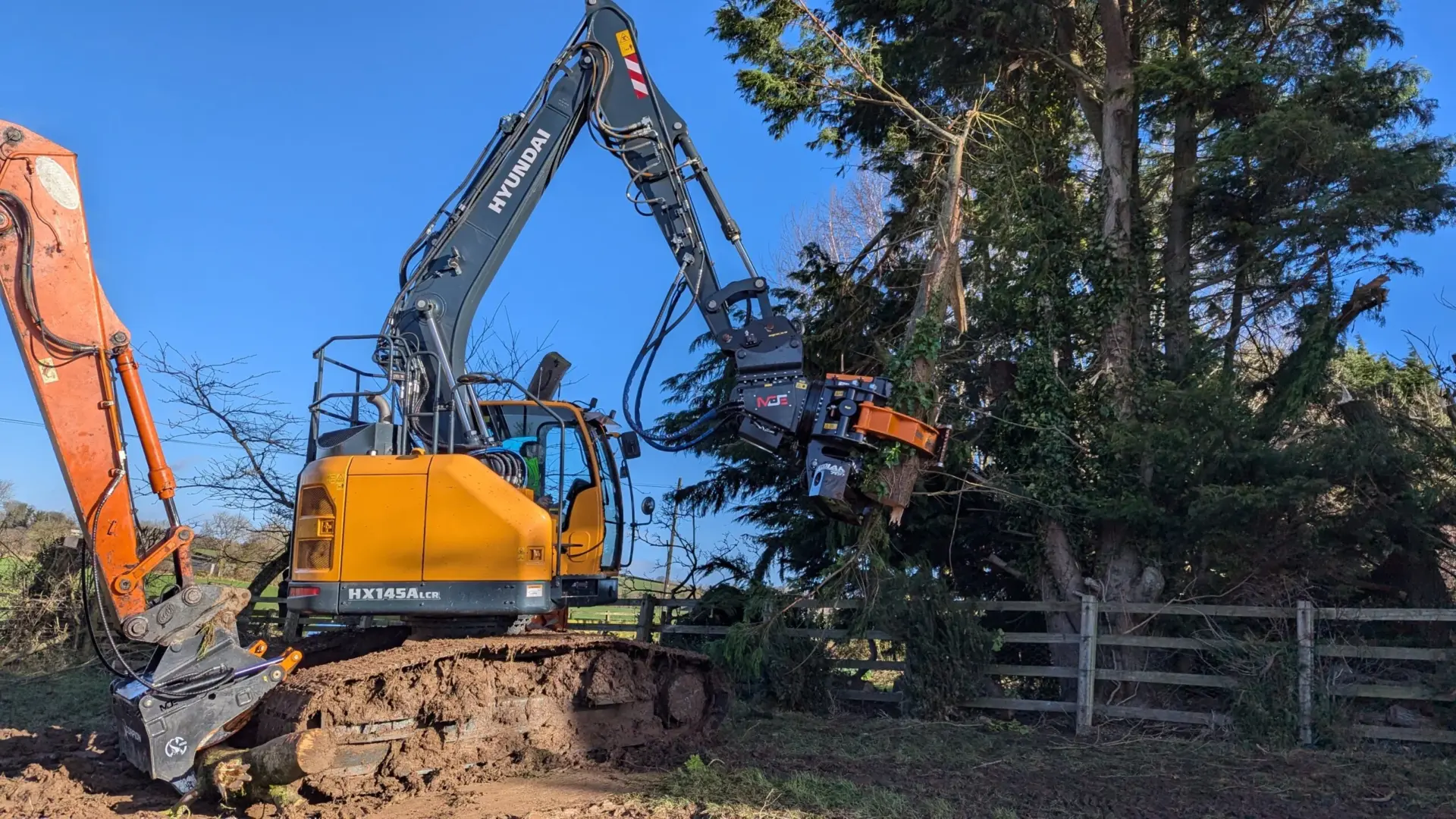

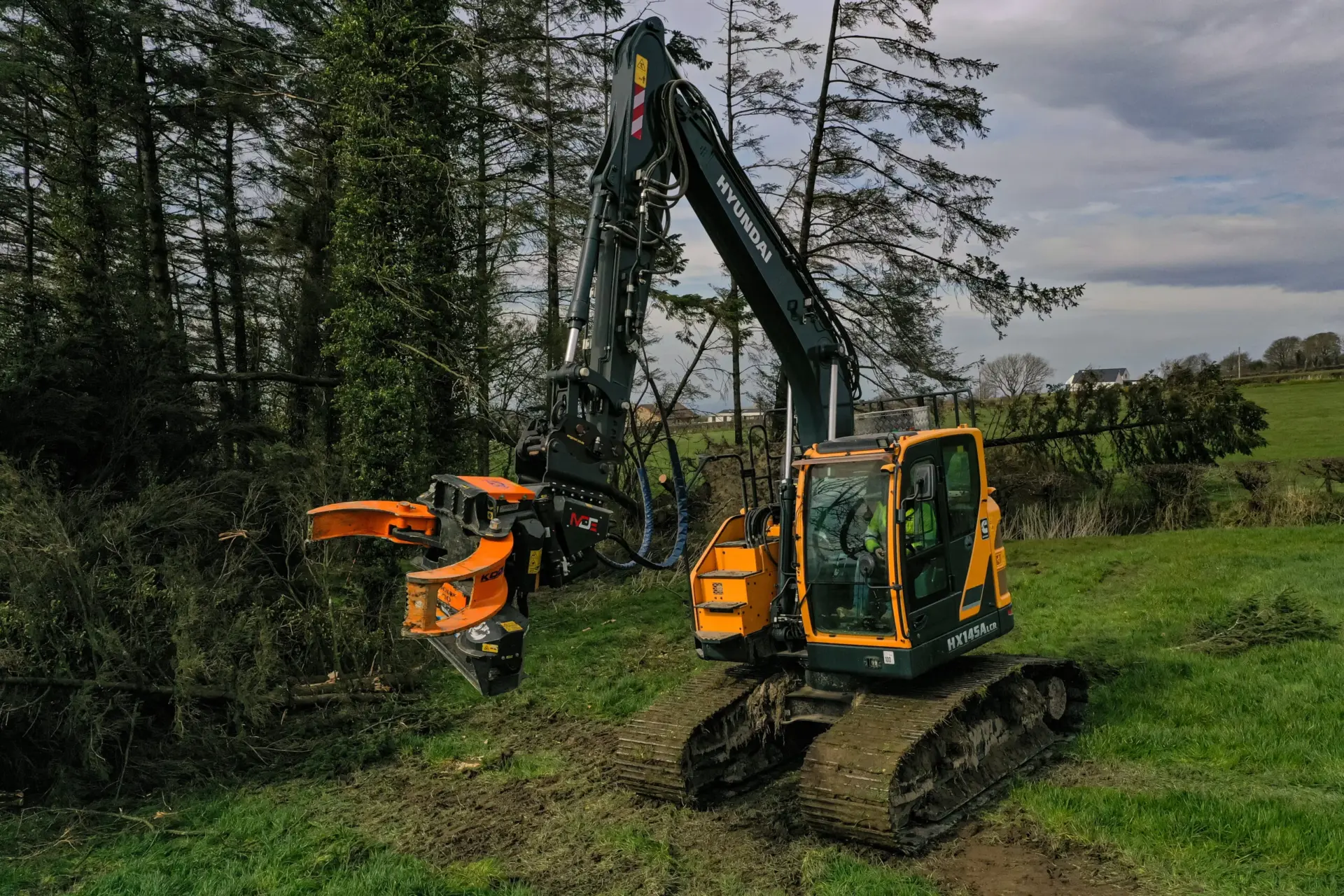

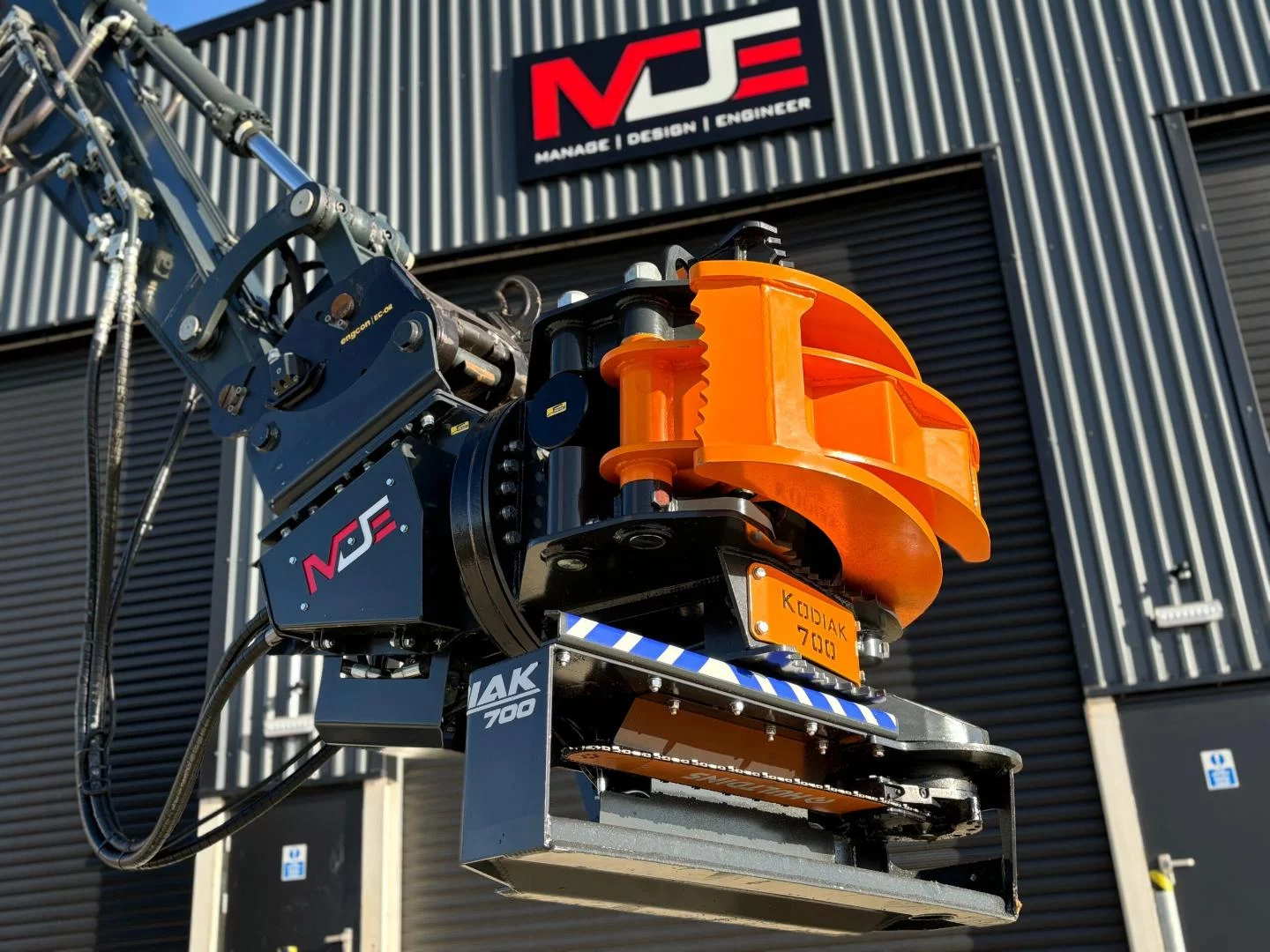

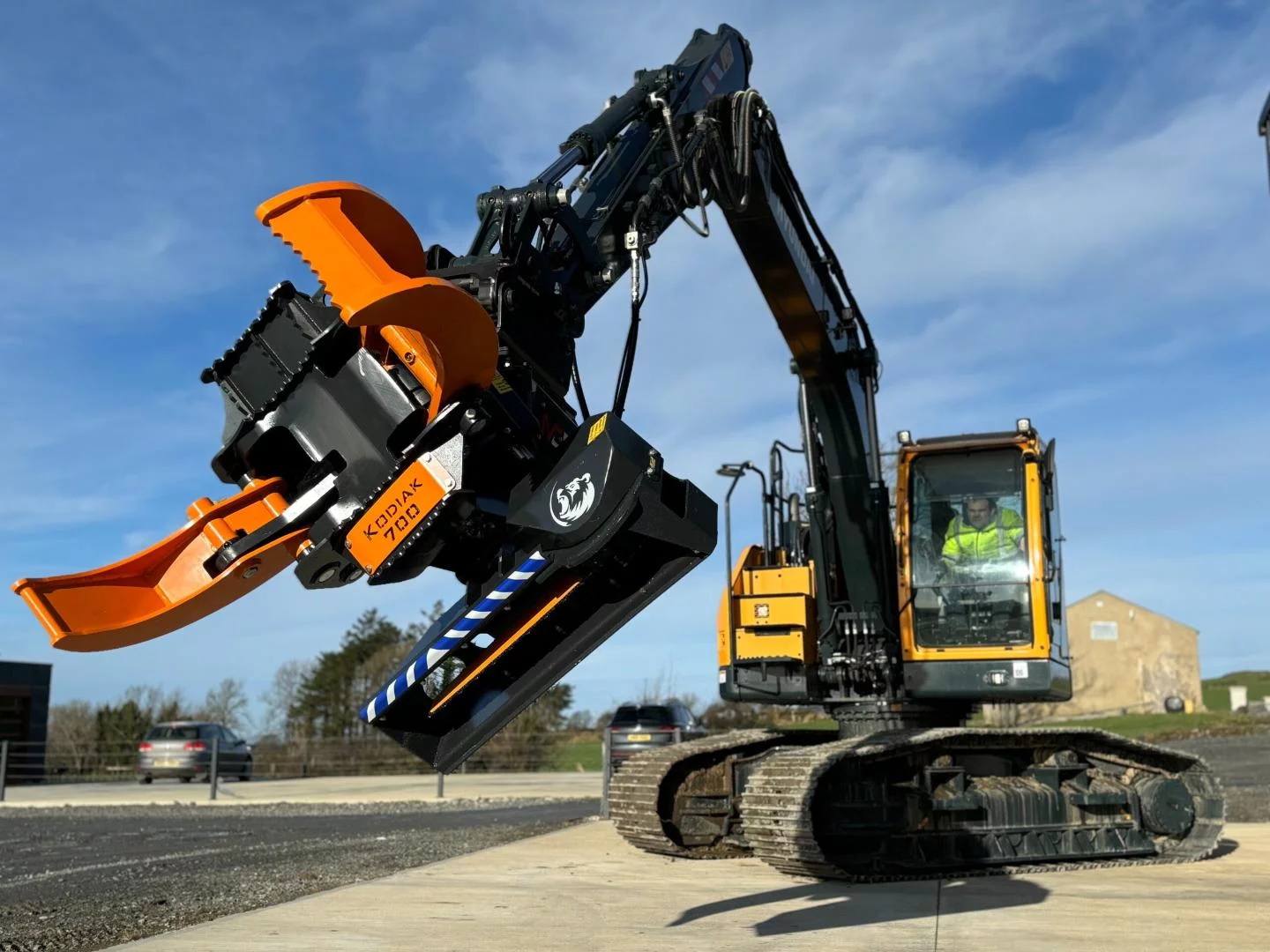

The Kodiak 700 Grapple Saw is engineered for precise tree felling and sectioning, delivering dependable performance in the most demanding working conditions. Its advanced grapple and saw system provides controlled cutting of large-diameter trees, significantly reducing risk in high-pressure environments. By securely gripping the tree before cutting begins, operators achieve cleaner, more accurate cuts while minimising the chance of uncontrolled movement or falling timber. Built for strength, durability, and operator protection, the Kodiak 700 stands as the ultimate solution for professional tree management operations.
The Kodiak 700 Grapple Saw is engineered for precise tree felling and sectioning, delivering dependable performance in the most demanding working conditions. Its advanced grapple and saw system provides controlled cutting of large-diameter trees, significantly reducing risk in high-pressure environments. By securely gripping the tree before cutting begins, operators achieve cleaner, more accurate cuts while minimising the chance of uncontrolled movement or falling timber. Built for strength, durability, and operator protection, the Kodiak 700 stands as the ultimate solution for professional tree management operations.
27” Cutting Capacity
Saw suspension

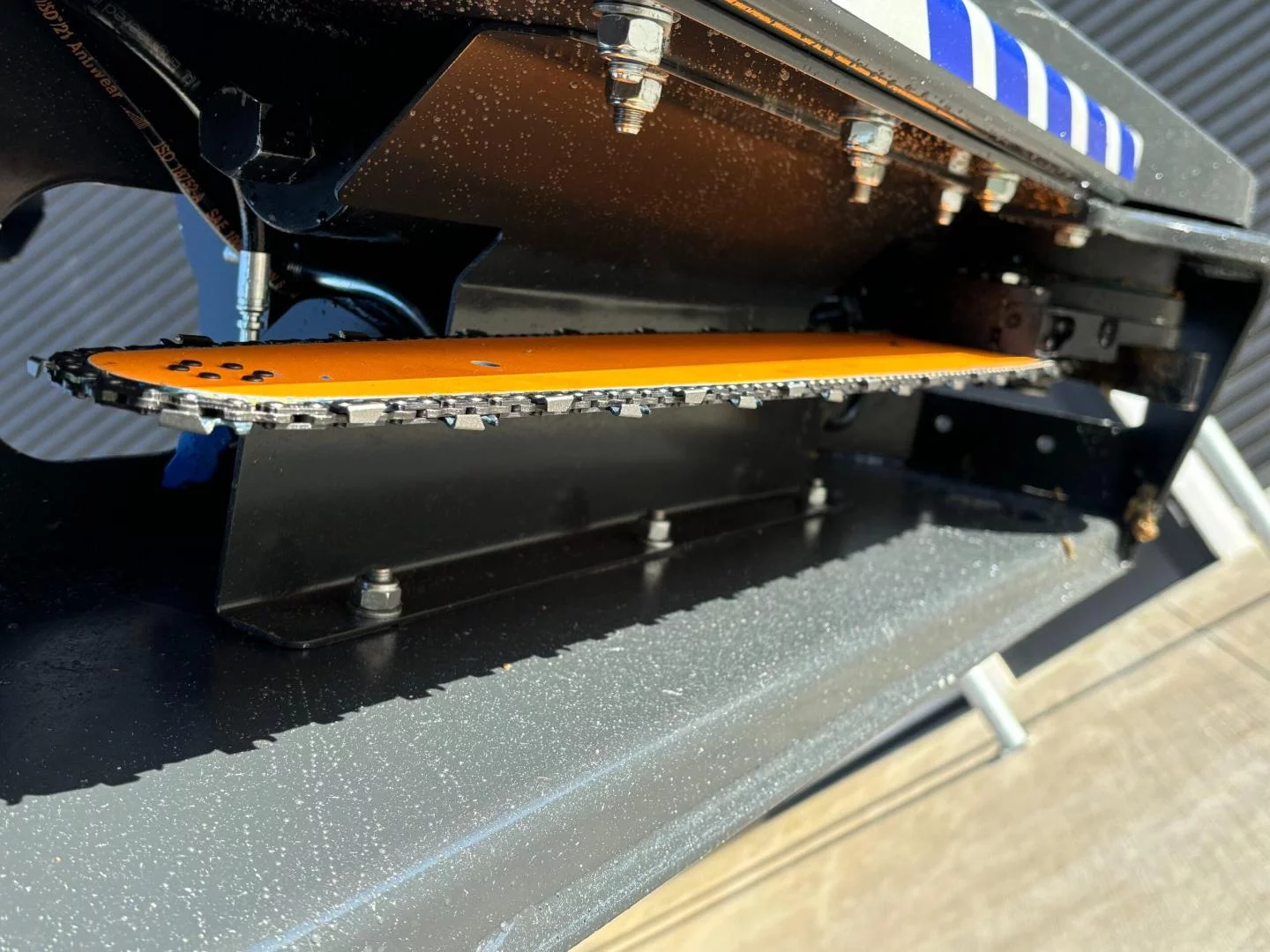

Bottom dropbox — protect & untangle the chain bar)
Auto bar retract
Automatic chain tensioner
Automatic saw lubrication
Torqued hinge points
Built Tough, Backed by Hardox® — MDE is Hardox® In My Body certified, ensuring unmatched strength, durability, and performance in every product.
Encased protected hydraulics — reduces risk of damaging hydraulic systems.
Bolt On Replaceable Hitch — Easily swap hitches to match various machines.
Serviceable design — all key components are replaceable, including bushings, sleeves, pins, and blade, all with easy-access greasing.
Quick and easy to set up — auxiliary pipes / hammer lines.
Proven durability — MDE has over a decade of production and real-world experience.
Manufactured in Northern Ireland, by MDE Machinery.
Made with durable HARDOX® steel for a lighter, stronger frame that delivers exceptional wear resistance and longevity.

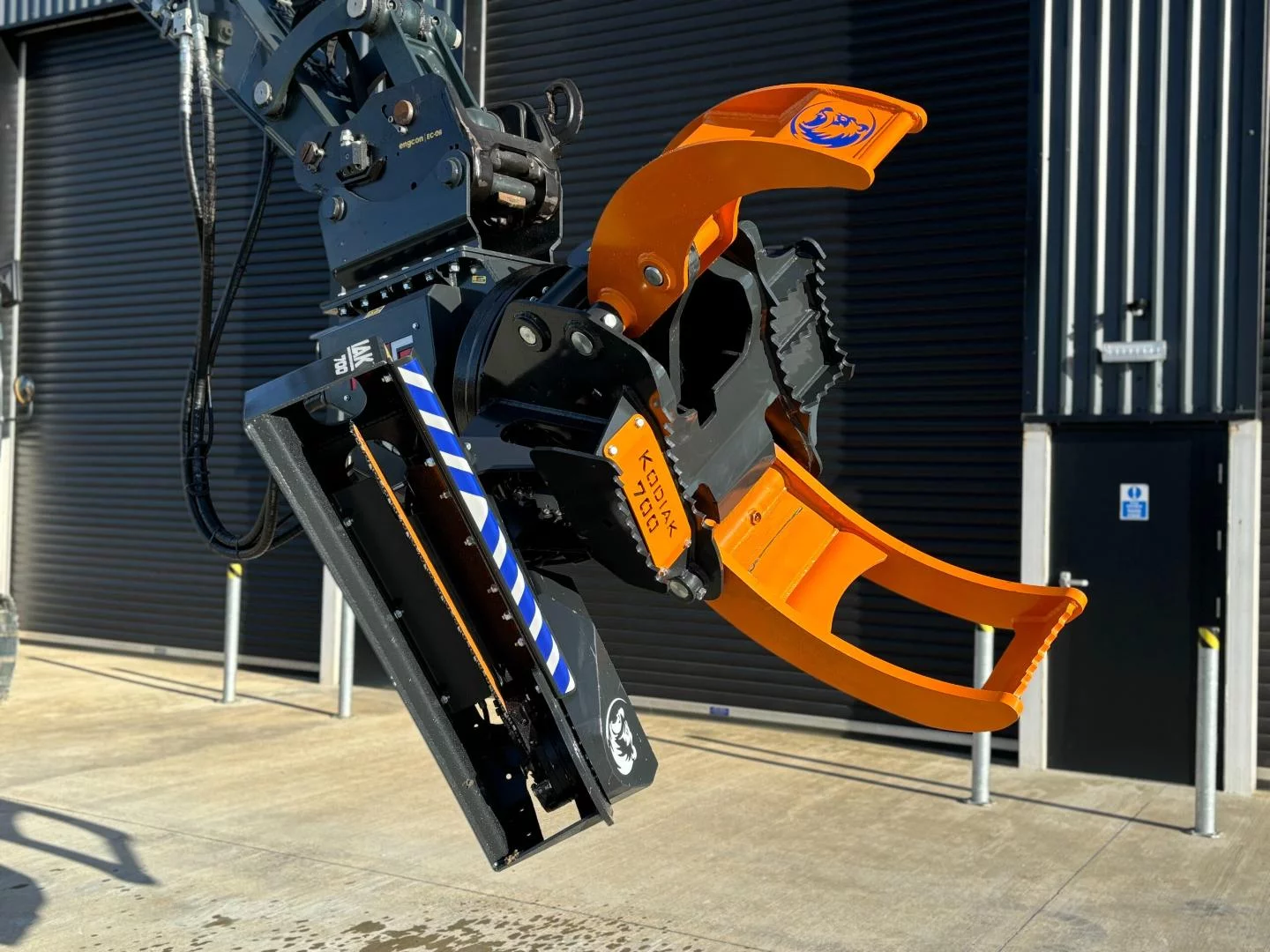

Equipped with a powerful hydraulic cylinder for a secure, controlled grip on trees, ensuring safer, cleaner cuts.
Features automatic chain tensioning, bar retraction, and self-lubrication for reliable, low-maintenance cutting performance.
Includes bolt-on adapter plates compatible with excavators, telehandlers, and cranes for flexible, easy installation.
| Model | Kodiak 700 |
|---|---|
| Vehicle Weight | 14t – 30t |
| Cutting Diameter | 700mm |
| Weight | 1,200kg |
| Grapple Opening | 1,240mm |
| Hydraulic Flow | 100L |
| Oil Pressure | 280 bar |
| Chain Size | 404 |
| Mounting Platform | Excavators, Telehandlers, Cranes |
