S45 Pallet Forks

Engineered for optimal material handling, the S45 Mechanical Pallet Forks provide heavy-duty lifting capability for excavators equipped with S45 tiltrotator couplers. Built on a high-strength ST52.3 structural frame reinforced with heavy 30mm Hardox® HB400 top and bottom guide rails, this attachment ensures maximum rigidity, impact absorption, and stability under heavy jobsite loads.

S45 Pallet Forks

Share On Social Media

Heavy Duty Material Handling

S45 Pallet Forks

Heavy-duty mechanical pallet fork frames engineered specifically for S45 quick coupler systems. Built for safe, stable handling of palletized goods, construction materials, and heavy site equipment.

Select Pallet Fork Model
Load Capacity
2,500 kg
Frame Width
1200 mm
Fork Tine Length
1200 mm
Coupler Standard
S45 S-Type

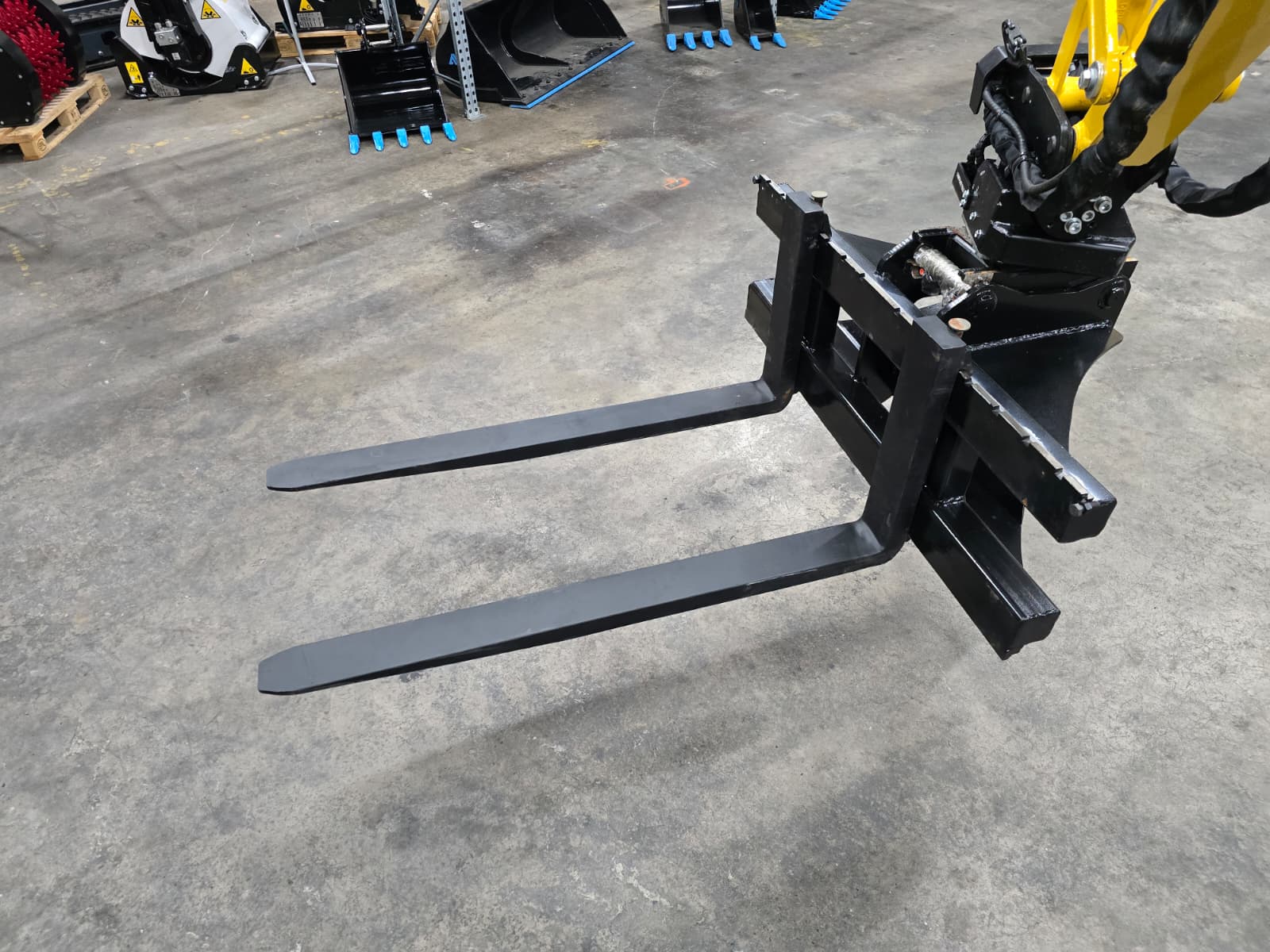

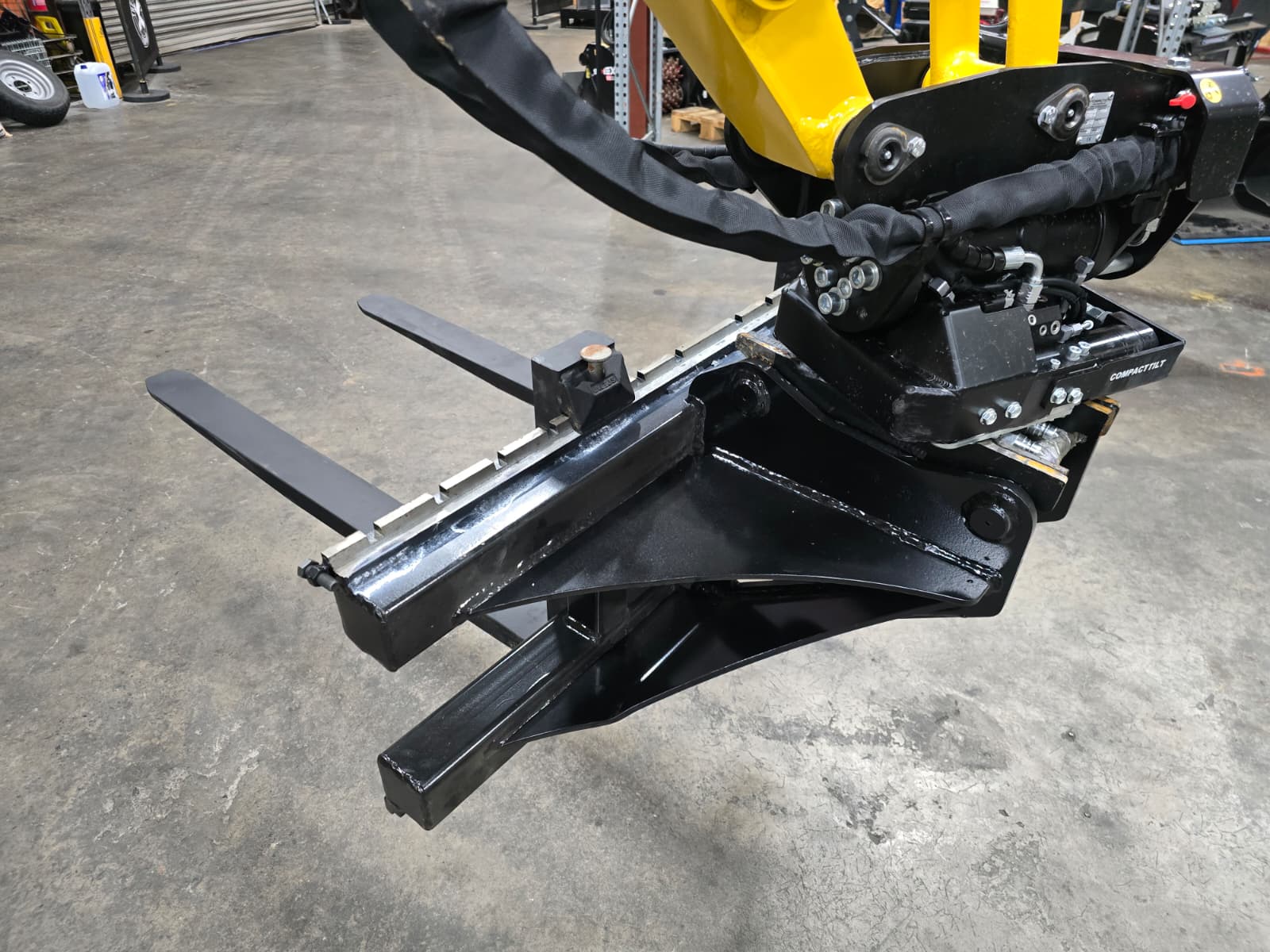

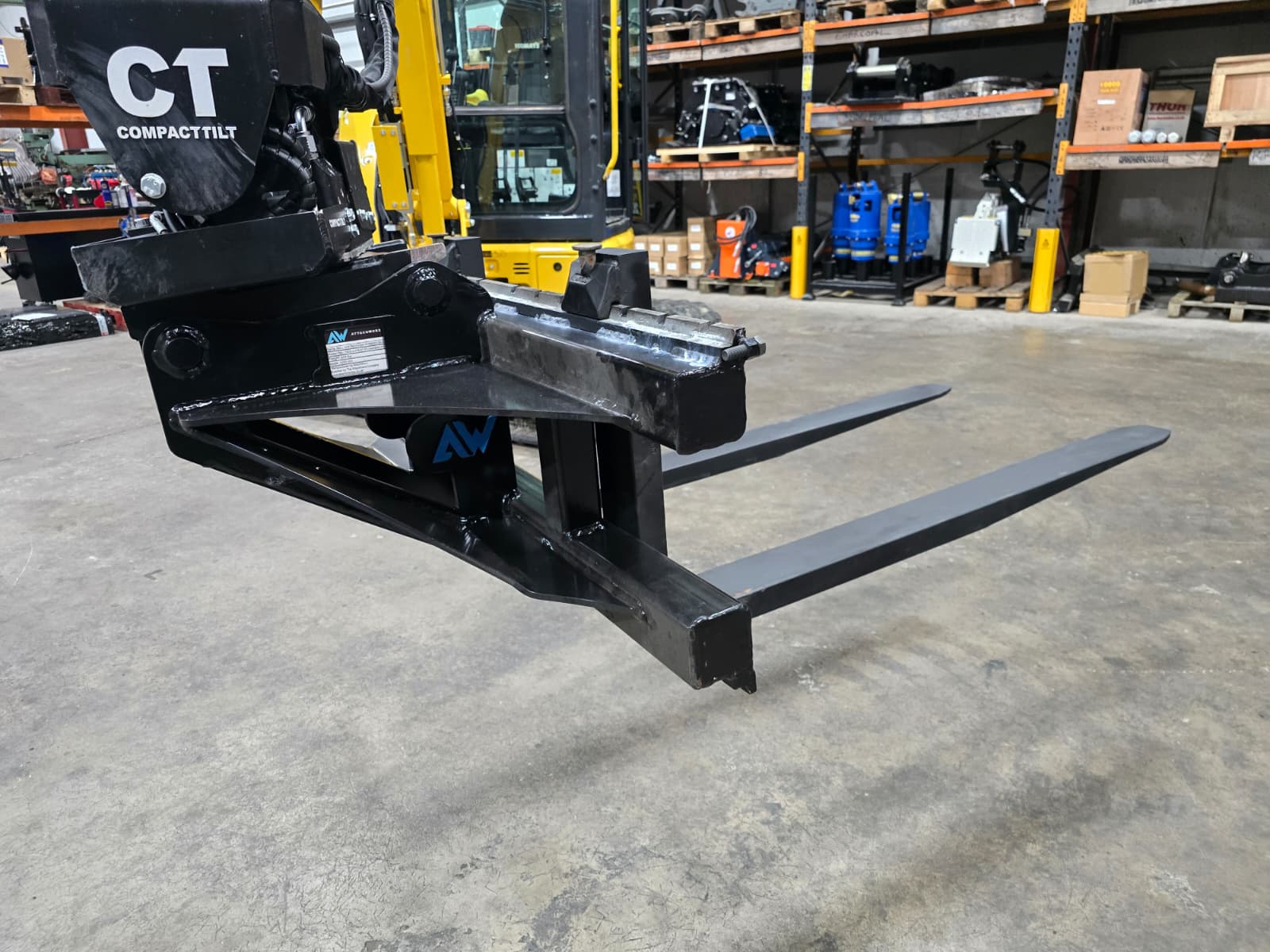

Product Views & Technical Schematics

Key Engineering Features

  • ✓
    Forged FEM2 Tines: High-tensile forged steel fork tines certified for 2.5-ton load center capacity.
  • ✓
    Precision S45 Quick Coupler Top: Integrated upper hook structure with Ø45mm EN8D steel pins for direct tiltrotator mounting.
  • ✓
    Adjustable Tine Position: Multiple latching notches along the carriage bar allow quick manual tine distance adjustment.
  • ✓
    Heavy Structural Frame: High-yield ST52.3 grade steel carriage frame absorbs dynamic load torque and tilting forces.

Industrial Paint Specification

  • Main Frame Finish RAL 9017 Traffic Black (Gloss)
  • Branding & Logo Finish RAL 5012 Light Blue (Gloss)

Material Standards

Forged Alloy Tines
Heat-treated alloy steel tines offering high tensile yield strength and deflection resistance.
ST52.3 Frame
Heavy structural steel carriage rail and top support plate construction.
EN8D Steel Pins
Precision-machined Ø45mm coupler pins hardened for long service life.

Parts Breakdown

Showing parts list for: S45 Mechanical Pallet Fork 2.5T
Item Description Material Thickness Qty
