6000-40 Excavator Log Splitter Package Deal – Machines up to 10 tons

SUITS EXCAVATORS 13,200 – 20,000 LB
Torque Range: 2,004 – 6,012 ft-lb
Oil Pressure Range: 1160 – 3,481 psi
Oil Flow Range: 19 – 40 GPM
Speed Range: 33 – 70 rpm

All Excavator Log Splitter Packages include double pin cradle hitch for mounting to your machine! Double Pin Cradle Hitches are built to machine specifications – current lead time is 2 weeks.

All cones are currently on backorder while we work on some design changes to help suit the US market. New cones will feature a 2″ hex machined cutout in the cone to eliminate the need for a bolt on adapter.

Estimated date that cones will be back in stock is the end of October. Contact us for more information!



Price range: $6,128.00 through $6,868.00

6000-40 Excavator Log Splitter Package Deal – Machines up to 10 tons

Share On Social Media

Excavator Log Splitter Package Deal for Excavators up to 10 tons!

This excavator log splitter package comes with 6000-40 hydraulic drive, excavator mount, hoses & couplers and our 300mm (12″) log splitter auger cone!

Our Excavator Log Splitter Package gives you the best deal on the market for a log splitter setup. If you have a special attachment inquiry or are unsure of your  machine’s compatibility with a particular attachment, please do not hesitate to contact us on (941) 212-0037.

Other attachments are also available to work with this auger setup like stump planers & auger bits.

Auger Specifications

  • Torque Range: 2,004 – 6,012 ft-lb
  • Oil Pressure Range: 1160 – 3,481 psi
  • Oil Flow Range: 19 – 40 GPM
  • Speed Range: 33 – 70 rpm
  • Unit Height: 31 in.
  • Unit Diameter: 11 in.
  • Unit Weight: 260 lbs
Hitch Options: Single Pin Hitch Double Pin Cradle Hitch (recommended) Double Pin Hitches are built to suit the machine’s pin dimensions. These can be manually pinned to the machine or picked up by a coupler. We also can build machine specific “quick connect” mounts for Kubota, John Deere, Bobcat etc. These are to suit the  specific machine make & model. Output Shaft Standard: 2.5 in. Hex

Package Details

Package Deal includes the following:
6000-40 Auger Drive for Excavators with Double Pin Cradle Mount, Log Splitter Cone Attachment, Hoses and Quick Release Flat Face Couplers Please note that the lead time to build the mount to suit your excavator is usually 2 to 3 weeks.
Suitable Excavators for this 6000-40 package (as a guideline): Bobcat E60, E88 CASE CX50, 80 CAT 305, 308 JCB 55z, 85z John Deere 50G, 85G Komatsu PC55, PC88 Kubota KX057 Kubota U50, U55 Sany SY50, 80 Takeuchi TB175, 260, 280 Volvo ECR55, 88 Yanmar ViO55, 80

Features

Forged Hood & Ears

Auger drives take up a lot of stress in certain areas, especially the hood and ears on top of the unit. These are forged pieces to endure the strain of drilling. Hood pins are also locked into place to ensure they never detach from the auger drive.

Hose & Coupler Options

All of our S4 auger drives (2” hex) come with high quality hoses and couplers included.
Larger auger drive units come with hoses to match the motor size of the unit.

  • 6000-40 (2.5” hex) drive come with ¾” hoses
  • 11000-45 to 18500-45 (3” square) drives come with 1” hoses.
Epicyclic Gearbox

Auger Torque manufactures their own planetary gearbox. The unique design features the non-dislodgement shaft design, and maximizes the final output torque of the unit at the operating hydraulic pressure. Manufacturing their own gearbox allows Auger Torque to maintain high quality and reliability that you depend on for your attachments.

Non Dislodgement Shaft

One unique feature of the auger torque range is the non-dislodgement shaft. The gearbox design  of each Auger Torque drive ensures that the output shaft is locked in place and will NEVER fall out of the gearbox housing.

We offer a lifetime guarantee against the shaft falling out of your auger drive.

Warranty Information

We provide replacement warranty units for the coverage listed below.

All Auger Torque products are warranted for the periods below:

  • Planetary Gearbox Components – 72 Months
  • Hydraulic Motors – 36 Months
  • All Other Parts / Products – 24 Months

For any additional information on the Auger Torque range, you can visit their website here!

Tools that also suit the 6000-40 auger drive:

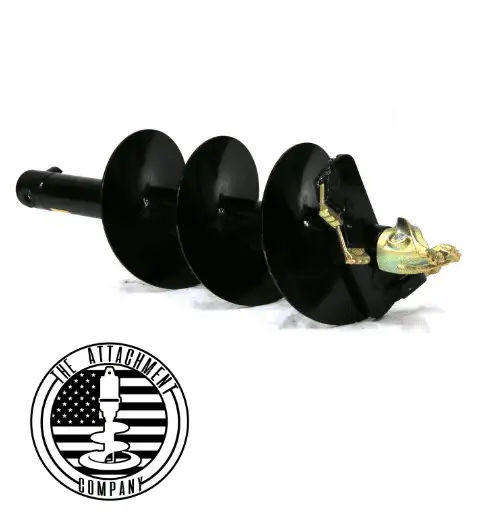

Auger Bits

auger bit

Stump Planers

stump planer auger bit

If you can’t find the answer to your question or Quote Request, contact us below!
