Skid Steer Auger Package – Standard Flow & High Flow Machines
Skid Steer Auger Package for standard flow machines with up to 30GPM and for high flow machines with up to 40GPM. This package deal comes with hydraulic drive, skid steer mount, hoses & couplers and your choice of auger size up to 36″!
Our Skid Steer Auger Package gives you the best deal on the market for an auger setup for your skid steer. If you have a special attachment inquiry, please do not hesitate to contact us on (941) 212-0037.

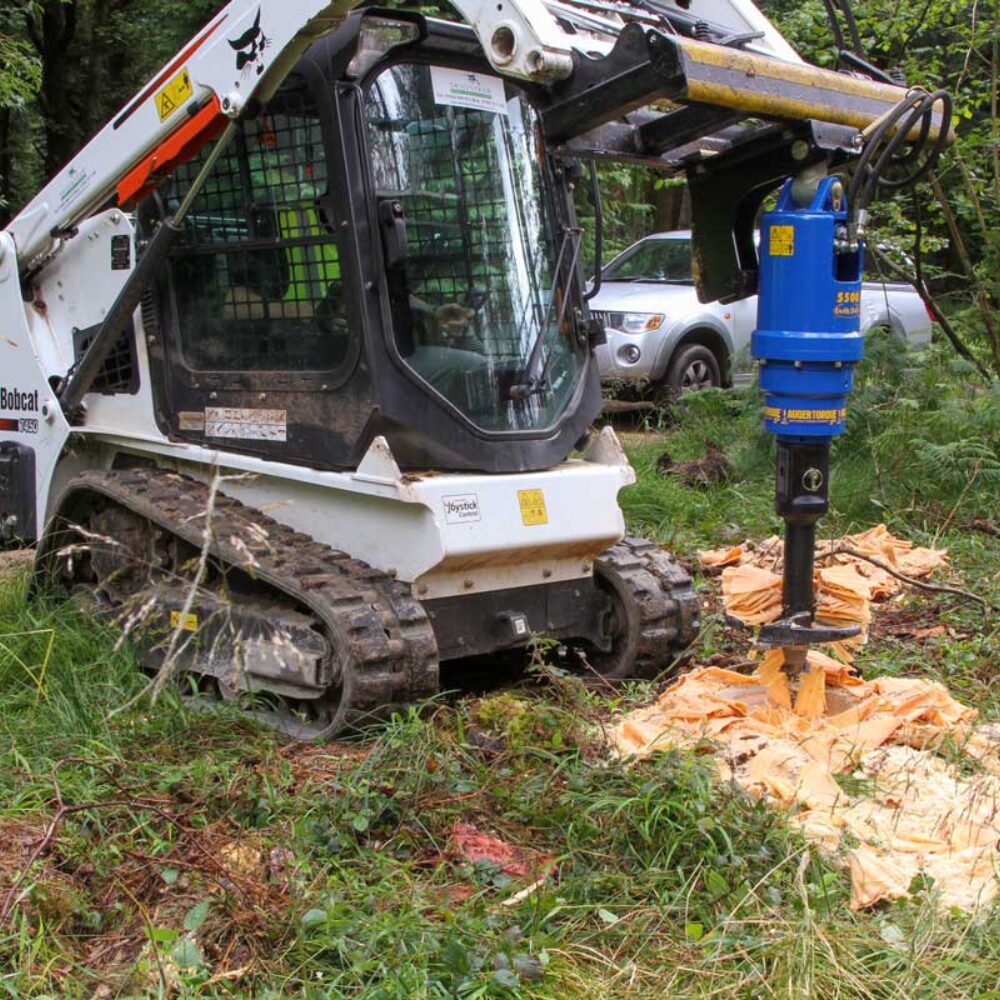

Other attachments are also available to work with the 3300-30 like our log splitter cone and stump planers!

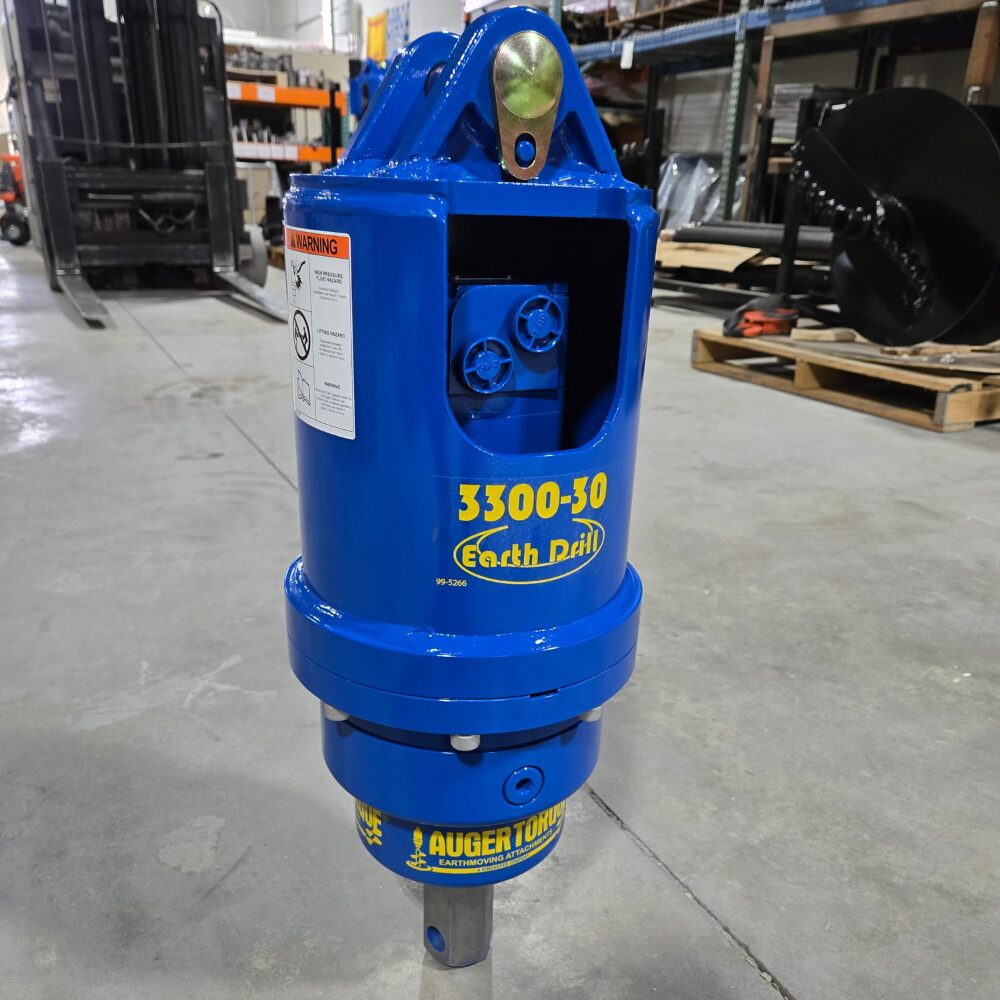

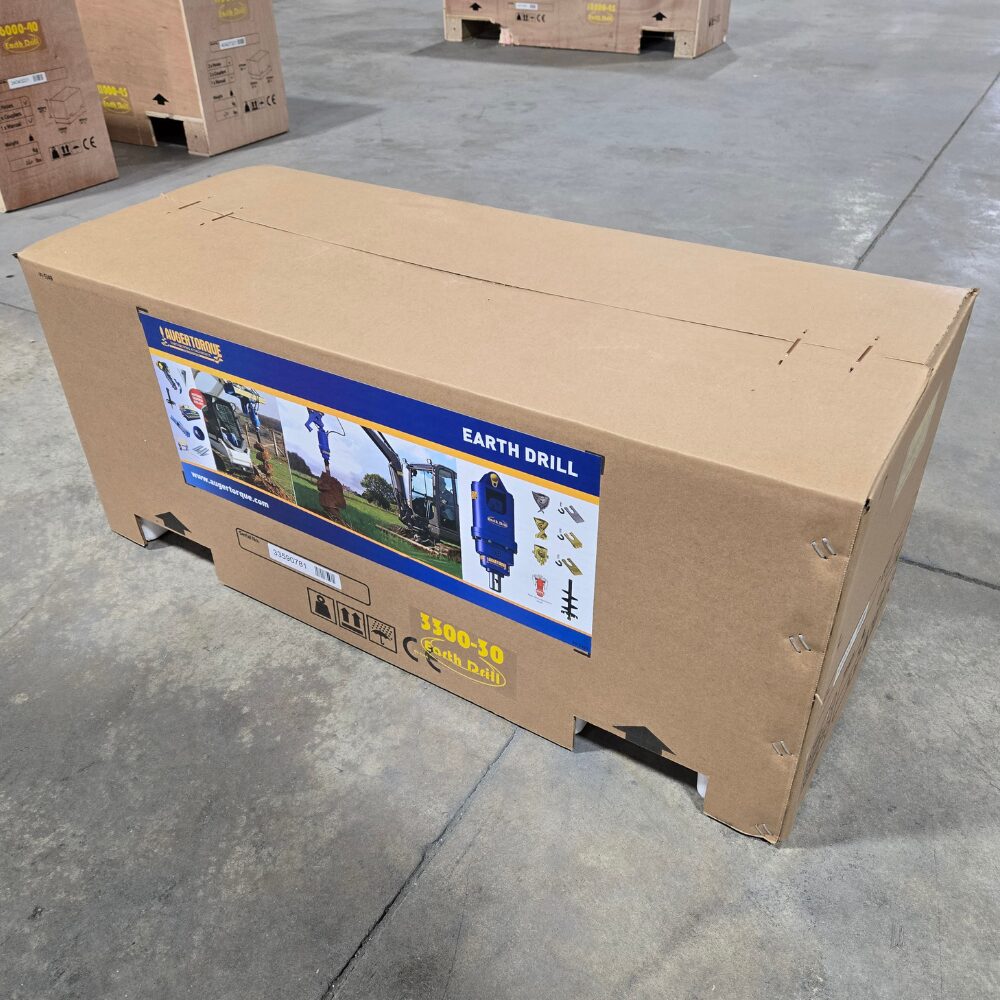

3300-30 Suits standard flow skid steers with up to 30GPM!
2″ Hex Output Shaft for augers from 4 in. – 36 in. diameter
Torque Range: 1,106 – 3,318ft-lb
Oil Pressure Range: 1,160 – 3,481 psi
Output Shaft: 2″ Hex (US Standard)
Oil Flow Range: 13 – 30GPM
Speed Range: 42 – 97 RPM
Unit Height: 26 in.
Unit Diameter: 10 in.
Unit Weight: 166lbs – 277lbs w/ skid steer mount
Machine Guidelines
3300-30 Suitable Skid Steers as a guideline: All the following models are suitable in standard flow. To utilize your machine’s high flow see the 6000-40 spec below.
NOTE: A high flow skid steer is suitable to run the 3300-30 drive in standard flow mode ONLY (up to 30GPM).
Bobcat S450 to S850
Bobcat T450 to T850
CAT 232D3 to 272D3
CAT 239D3 to 299D3
CASE SR175B to SV340B
CASE TR170B to TV620B
JCB 215 to 300 & TELESKID 3TS-8W
JCB 215T to 325T
John Deere 318G to 332G
John Deere 317G to 333G
Kubota SSV65 & SSV75
Kubota SVL65 to SVL97-2
Takeuchi TL6R to TL12V2
Volvo MC80 to MC155

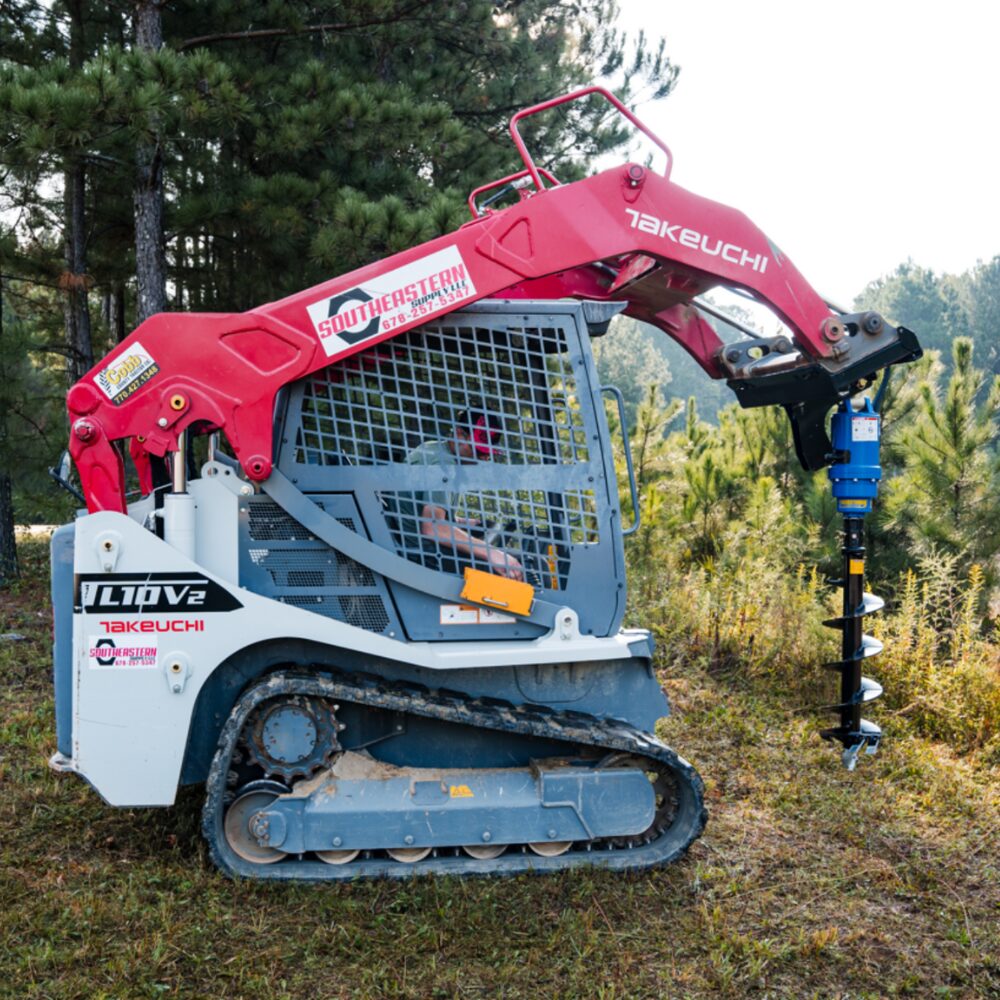

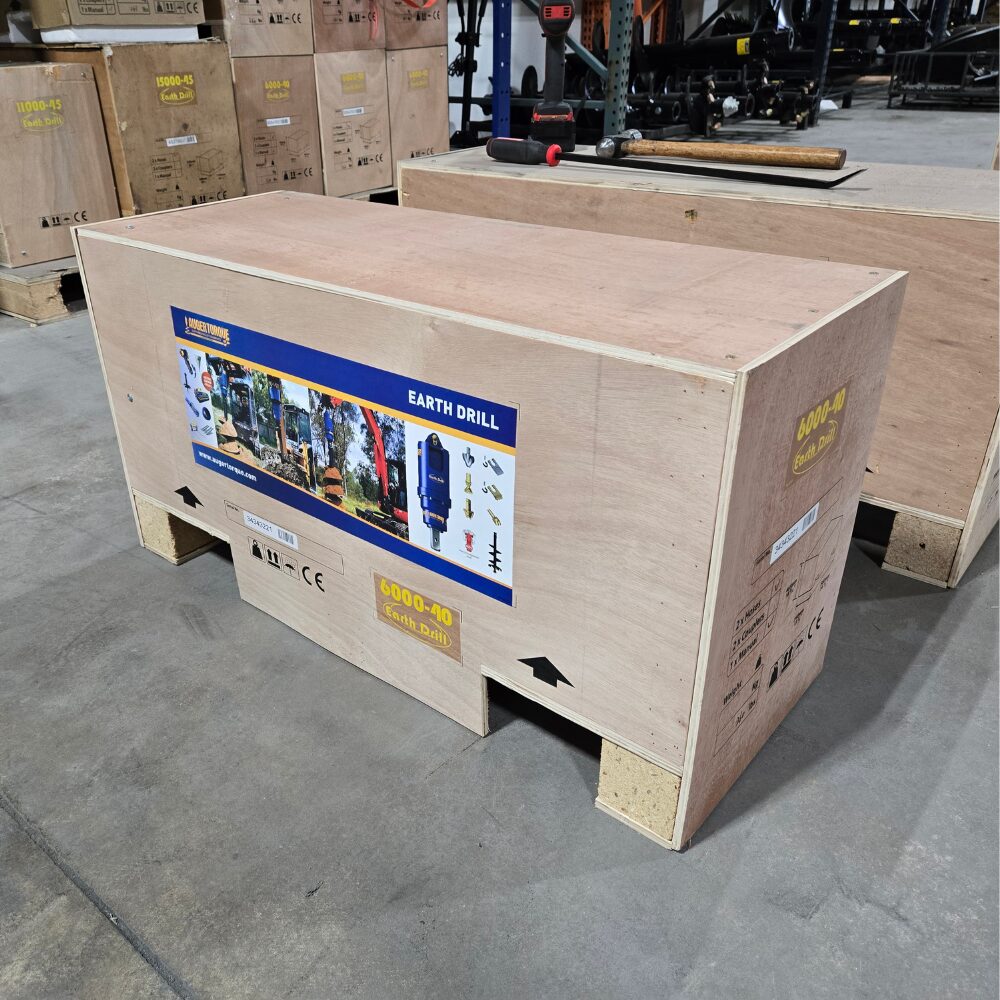

6000-40 Suits standard flow skid steers with up to 40GPM!
2.5″ Hex Output Shaft for augers from 6 in. – 48 in. diameter
Oil Pressure Range: 1,160 – 3,481 psi
Output Shaft: 2.5″ Hex
Oil Flow Range: 19 – 40GPM
Speed Range: 33 – 70 rpm
Unit Height: 31 in.
Unit Diameter: 11 in.
Unit Weight: 260lbs (without skid steer mount) 425lbs with mount
Machine Guidelines
6000-40 Suitable Skid Steers as a guideline: All the following models are recommended for use in high flow (up to 40 GPM).
Bobcat S850 & T850
CAT 272D3 & 299D3
CASE SV340B & TV620B
JCB 325T
John Deere 332G & 333G
Kubota SVL75 & SVL97-2
Takeuchi TL12V2
Volvo MC155
Auger Drive Features
Forged Hood Ears
Auger drives take up a lot of stress in certain areas, especially the hood and ears on top of the unit. These are forged pieces to endure the strain of drilling. Hood pins are also locked into place to ensure they never detach from the auger drive.
Non Dislodgement Shaft
One unique feature of the auger torque range is the non-dislodgement shaft. The gearbox design of each Auger Torque drive ensures that the output shaft is locked in place and will NEVER fall out of the gearbox housing.
We offer a lifetime guarantee against the shaft falling
out of your auger drive.
Hose & Coupler Options

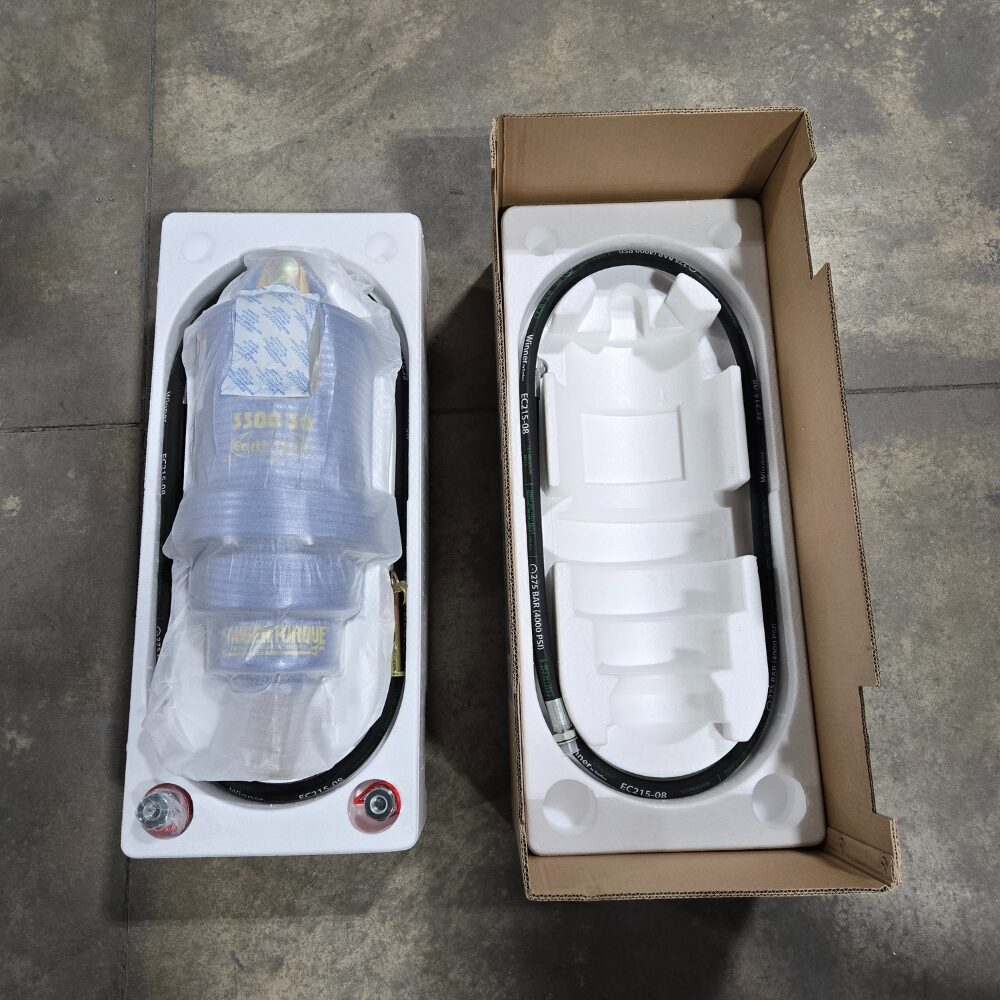

All of our 2” hex auger drives come with 1/2″ high quality hoses and 1/2″ flat face couplers included.
Larger auger drive units come with hoses to match the motor size of the unit.
6000-40 (2.5” hex) drive come with ¾” hoses
11000-45 to 18500-45 (3” square) drives come with 1” hoses.
Non Dislodgement Shaft
Auger Torque manufactures their own planetary gearbox. The unique design features the non-dislodgement shaft design. This maximizes the final output torque of the unit at the operating hydraulic pressure. Manufacturing their own gearbox allows Auger Torque to maintain high quality and reliability that you depend on for your attachments.
Skid Steer Side Shift Mounting Frame
Warranty Information
We provide replacement warranty units for the coverage listed below.
All Auger Torque products are warranted for the periods below:
- Planetary Gearbox Components – 72 Months
- Hydraulic Motors – 36 Months
- All Other Parts / Products – 24 Months
For any additional information on the Auger Torque range, you can visit their website here!
