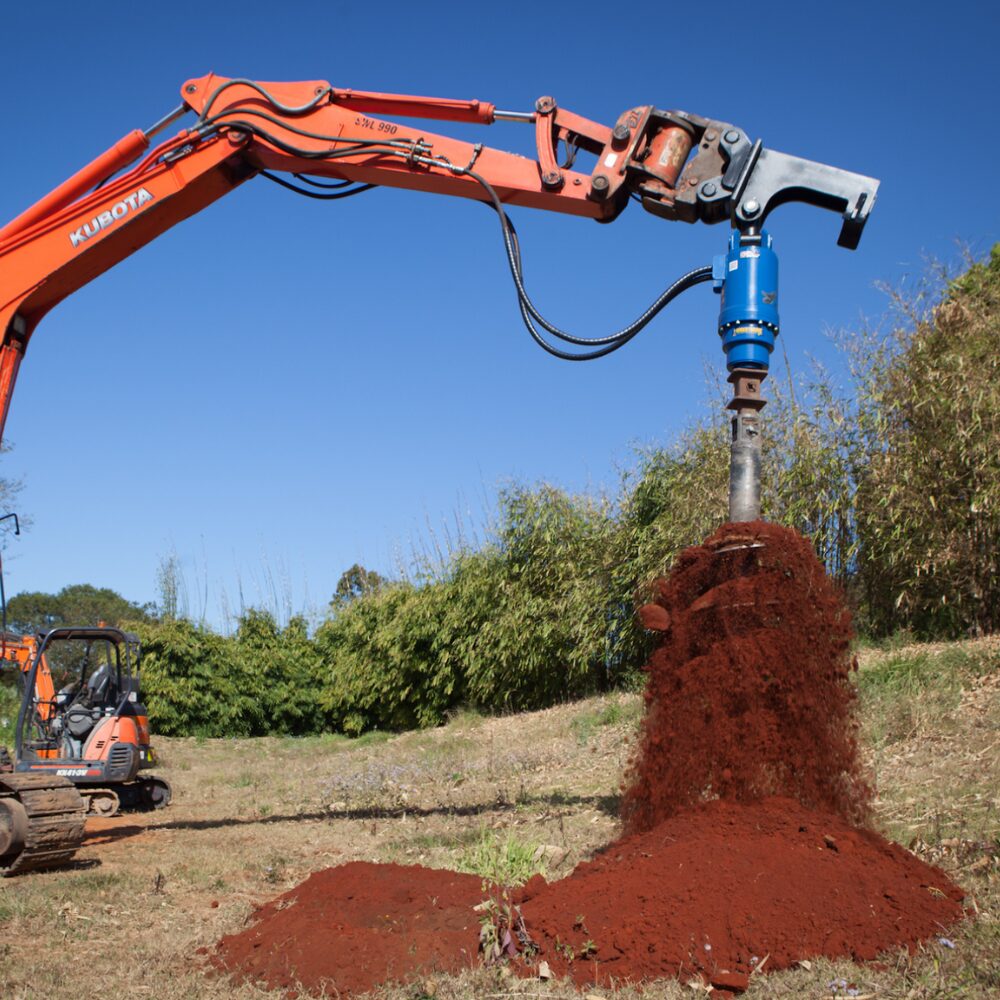

Excavator Auger Package Deal for Machines up to 10 tons!
This Excavator Auger Package Deal comes with hydraulic drive, single pin or double pin cradle mount, hoses & couplers and your choice of auger up to 48″ diameter!
Our Excavator Auger Package gives you the best deal on the market for an auger setup. If you have a special attachment inquiry or are unsure of your machine’s compatibility with a particular attachment, please do not hesitate to contact us on (941) 212-0037.

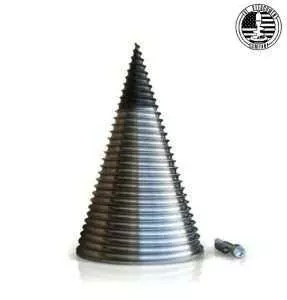

Other attachments are also available to work with this auger setup like stump planers & log splitters
Torque Range: 2,004 – 6,012 ft-lb
Oil Pressure Range: 1,160 – 3,481 psi
Oil Flow Range: 19 – 40 gpm
Speed Range: 33 – 70 rpm
Unit Height: 31 in.
Unit Diameter: 11 in.
Unit Weight: 260 lbs
Hitch Options: Single Pin Hitch

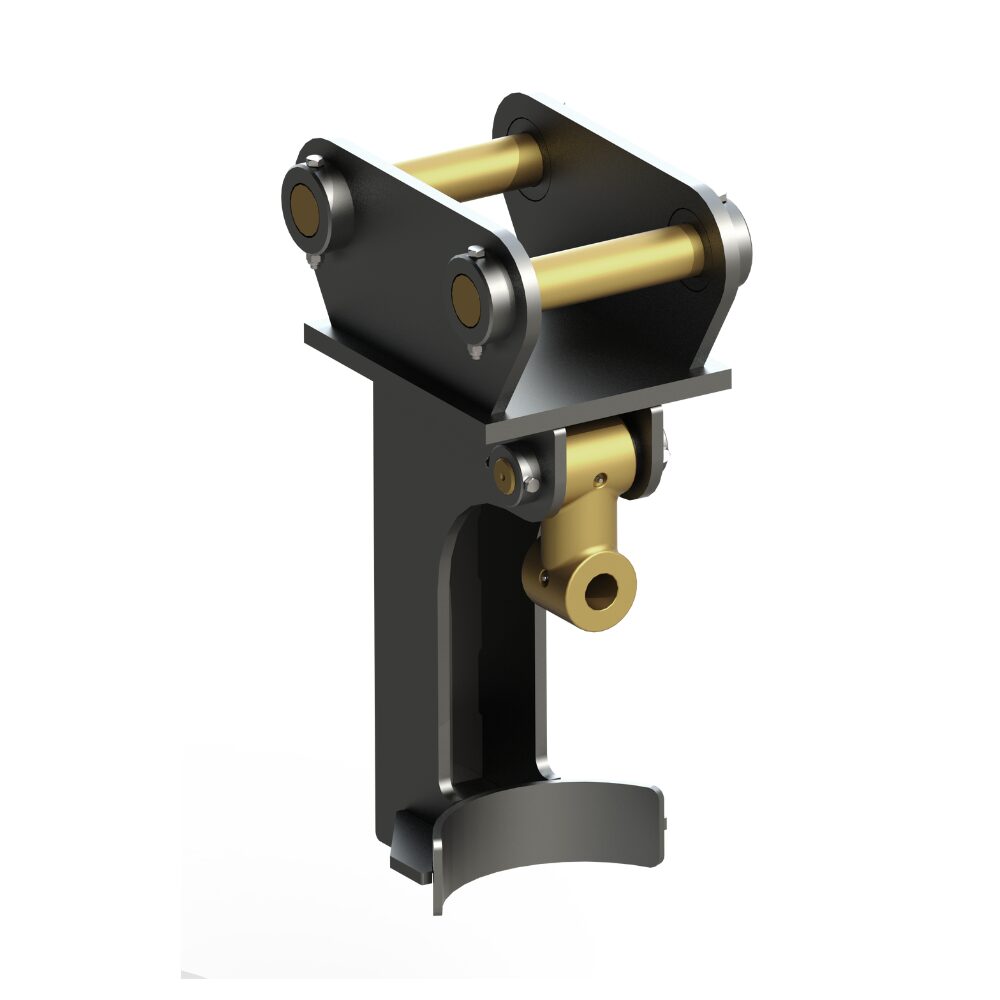

Double Pin Cradle Hitch (recommended)
Double Pin Hitches are built to suit the machine’s pin dimensions. These can be manually pinned to the machine or picked up by a coupler.
We also can build machine specific “quick connect” mounts for Kubota, John Deere, Bobcat etc. These are to suit the specific machine make & model.
Output Extras: 2 Way Valve
Output Shaft Std: 2.5 in. Hex
Output Shaft Opt: 2.96 in. Square
S5 Augers (2.5″ Hex)
6 in. – 48 in. Diameter
Suitable Excavators for this 6000-40 package (as a guideline):
Bobcat E60, E88
CASE CX50, 80
CAT 305, 308
JCB 55z, 85z
John Deere 50G, 85G
Komatsu PC55, PC88
Kubota KX057
Kubota U50, U55
Sany SY50, 80
Takeuchi TB175, 260, 280
Volvo ECR55, 88
Yanmar ViO55, 80
Auger Features
Forged Hood Ears
Auger drives take up a lot of stress in certain areas, especially the hood and ears on top of the unit. These are heavy duty forged pieces to endure the strain of drilling. Hood pins are also locked into place to ensure they never detach from the auger drive.
Epicyclic Gearbox
Auger Torque manufactures their own planetary gearbox. The unique design features the non-dislodgement shaft design, and maximizes the final output torque of the unit at the operating hydraulic pressure. Manufacturing their own gearbox allows Auger Torque to maintain high quality and reliability that you depend on for your attachments.
Hose & Coupler Options
All of our S4 auger drives (2” hex) come with high quality hoses and couplers included.
Larger auger drive units come with hoses to match the motor size of the unit.
6000-40 (2.5” hex) drive come with ¾” hoses
11000-45 to 18500-45 (3” square) drives come with 1” hoses.
Non-Dislodgement Shaft
One unique feature of the auger torque range is the non-dislodgement shaft. The gearbox design of each Auger Torque drive ensures that the output shaft is locked in place and will NEVER fall out of the gearbox housing.
We offer a lifetime guarantee against the shaft falling out of your auger drive.
High Quality Hydraulic Motors
Auger Torque’s huge buying power means we work closely with high quality suppliers to develop the most reliable attachments available on the market today
Video Gallery
Warranty Information
Auger Torque provides a leading warranty for auger drive components as shown below. This includes LIFETIME parts replacement warranty on the dislodgement of the drive output shaft.
All Auger Torque products are warranted for the periods summarized below:
- Gearbox Components – 72 Months
- Hydraulic Motors – 36 Months
- All Other Parts / Products – 24 Months
