Sale!

Skid Steer Trencher – Standard Flow – Up to 48″ Depth – Up to 8″ Width

$6,070.00$6,270.00

Skid Steer Trencher – Auger Torque MT Trencher Range

Standard Flow Skid Steer Trencher Attachment for trenchers up to 4ft deep and 8″ wide.  This listing comes with the trencher, chain, universal skid steer mount, 1/2″ hoses and 1/2″ flat face couplers.

Cutting Depth Range: 2-4ft
Cutting Width Range: 4-8 in.
Oil Pressure Range: 2610-3481 psi
Oil Flow Range: 12-27 GPM

Standard Lead Time: 2-3 days

Shipping Calculated at Checkout

SKU: 45-12S06F110073616 Categories: , Tags: , Manufacturer:

Description

Skid Steer Trencher – Standard Flow MT Range from Auger Torque!

Skid Steer Trencher from The Attachment Company / Auger Torque. The most popular trencher attachment on the market with a maximum depth of 4 feet! To suit skid steer loaders with standard flow hydraulics and also excavators from up to 6 tons.

The MT Range of trenchers for Auger Torque are the highest quality and also cost effective on the market.

For the same trencher attachment but for a mini excavator – look at the excavator listing here!

If your skid steer is equipped with high flow hydraulics – you can visit our XD range here!

Skid Steer Trencher Specifications

Cutting Depth Range: 2-4ft
Cutting Width Range: 4-8 in.
Oil Pressure Range: 2610-3481 psi
Oil Flow Range: 12-27 GPM (to suit standard flow skid steers)
Unit Width: Approximately 4ft
Weight: 750-900lbs (depending on the size and chain width)

What is included with the trencher?

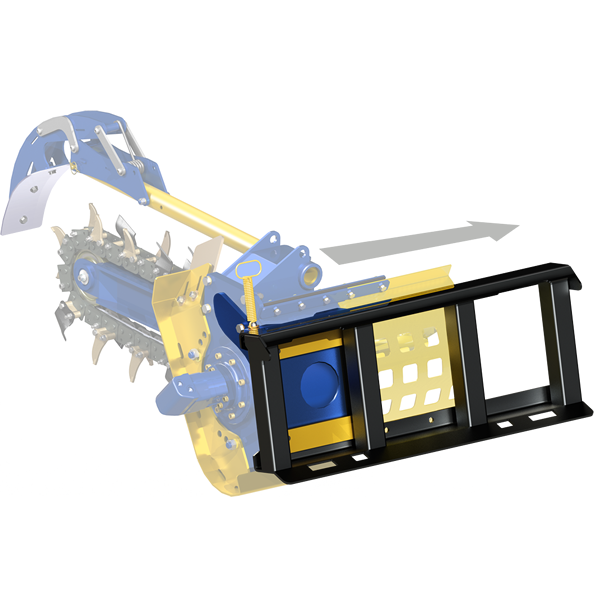

Our trenchers are built to order and delivered with the desired chain width and length, universal side shift skid steer mount, 1/2″ hoses and 1/2″ flat face couplers. You can pick up the trencher and go straight to work.

Trencher Features

Adjustable Depth Control

The Auger Torque MT Trencher Range has adjustable trenching depth capabilities to cover a wider range of applications. MT 48 trenchers can be set to 32″, 40″ and 48″ depths.

auger torque trencher depth capability

Efficient & Budget Friendly

The task of digging a trench has been transformed since the trencher Attachment. Trenchers make digging trenches much faster and more efficient than before. A chain feeds the dirt up the boom and the spoil is piled neatly to the side of the trench by the auger.

The MT Range is designed for smaller machines than the XD Range. Suiting smaller machines and therefore being more budget friendly

High Quality Motor & Gearbox

With only the highest quality hydraulic motors our trenchers have great reliability. Using Auger Torque’s own planetary gearbox ensures enough power so that your trenching is carried out with ease.

Chain Configurations

Chains are available in a number of different tooth configurations for trenching in soft ground, mixed grounds and even permafrost allowing you to get the job done no matter what the soil type.

Warranty Information

Auger Torque provide replacement warranty units for the coverage listed below for all trenchers for skid steers and excavators.

All Auger Torque products are warranted for the periods summarized below:

  • Planetary Gearbox Components – 72 Months
  • Hydraulic Motors – 36 Months
  • All Other Parts / Products – 24 Months

For any additional information on the Auger Torque MT range, you can visit their website here!

Spare Parts

The Attachment Company carries spare parts for all attachments for skid steers and excavators.

Download the parts list for the MT range of trenchers from Auger Torque below. If you need help getting replacement parts – you can visit the trenchers parts page here or  contact us!

Frequently Asked Question's

How deep can you dig with this trencher?

The maximum digging depth of this trencher is 4ft.

How wide of a trencher can you dig with this trencher?

For each size this is the maximum chain width we recommend:
2ft – 10″ maximum width
3 & 4ft – 8″ maximum width

What is the lead time on one of these trencher attachments?

The Attachment Company keeps all of the components in stock and ready to assemble the correct trencher size and chain width to suit your needs. The standard lead time is 2-3 days for a trencher for a skid steer and 1-2 weeks for an excavator trencher – depending on the mounting type.

Can I use this trencher on an excavator?

Yes, we use the same trencher for excavators and skid steers. The mounts for skid steers and excavators bolt onto the back of the trencher and can be interchanged for use on more than one machine.

Can I use this trencher on a high flow skid steer?

It depends. The maximum oil flow for the 4ft trencher is 27GPM. Many skid steers have a “high flow” option that is not higher than 27GPM.

For larger skid steers with high flow over 27GPM, you can either use this MT trencher is standard flow mode – or you can step up to the XD trencher here!

Video Gallery

If you need some more information on how to select the correct attachment for your skid steer you can read our article here!

Select the correct skid steer attachment

If you can’t find the answer to your question, contact us below!

    Additional information

    Depth

    2 feet, 3 feet, 4 feet

    Width

    6 inches, 8 inches, 10 inches
